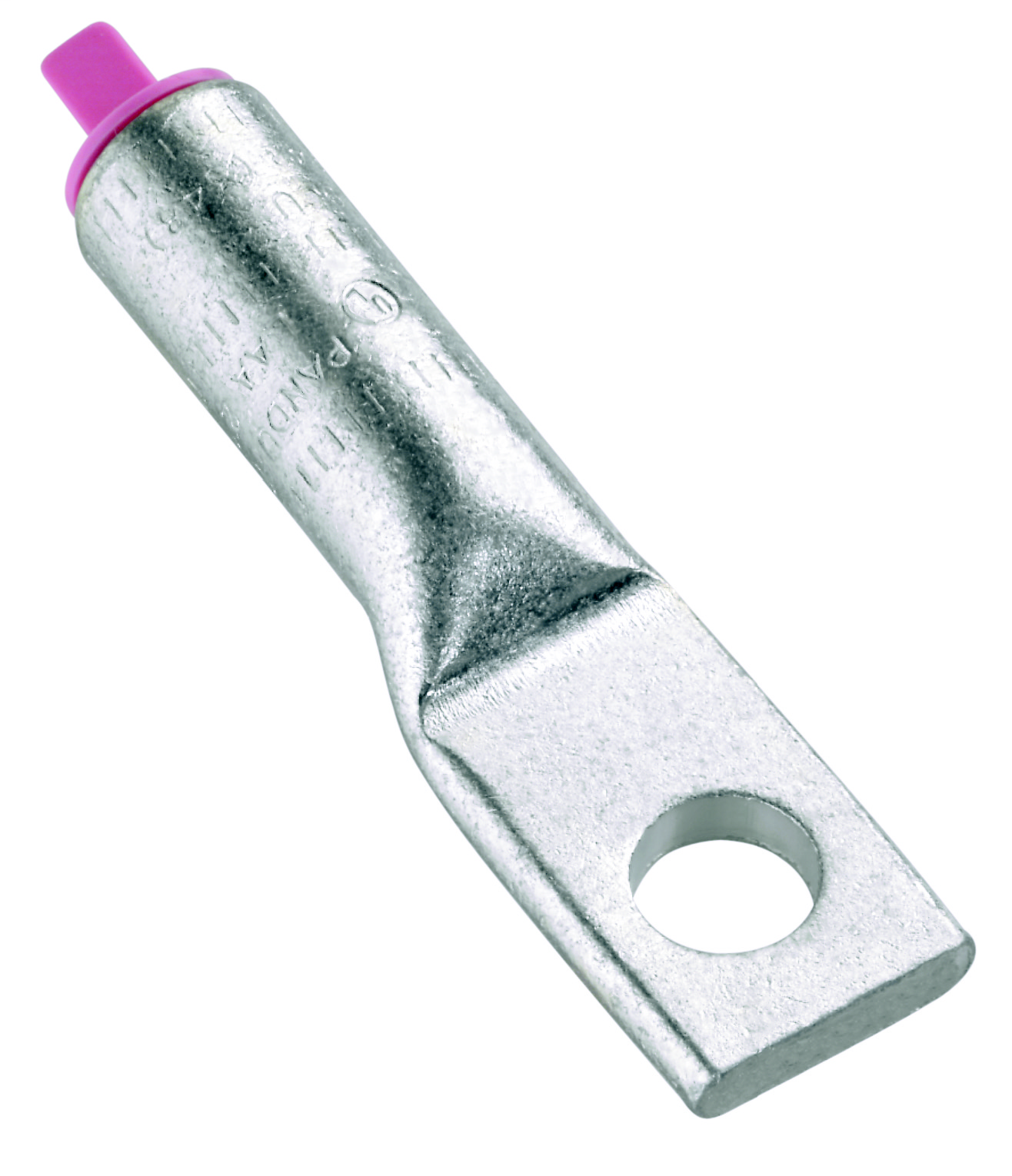

Product image for Panduit LAA250-12-5 Aluminum Compression Lug, 1 Hole, 250 kcmil, 1/2" (12.7mm) Stud
Image thumbnail 0
Image thumbnail 1
Email

Panduit LAA250-12-5 Aluminum Compression Lug, 1 Hole, 250 kcmil, 1/2" (12.7mm) Stud

Manufacturer: Panduit | Catalog # LAA250-12-5 | North Coast Part # 846604
$3,294.60/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual
The LAA250-12-5 Aluminum Compression Connector Lug, one-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
1.63 in
Barrel Type
Long
Base Material
Aluminum
Color Coding
Red
Material
Aluminum
Number of Holes
1 Hole
Size
250 kcmil Code
Stud Hole Size
1/2 in
Stud Size
0.5 in
Tongue Thickness
0.31 in
Tongue Type
Standard
Tongue Width
1.25 in
Type
Type LAA
Voltage
35000 Volt

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983910465
Color
Red
Finish
Tin Plated
GTiN
00074983910465
Product Type
Power Connectors
Product UPC
07498391046
UNSPSC
39121405

Dimensions

Length
3.63 Inch
Outer Diameter
0.91 in
Overall Length
3.67 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico,USA
Hazmat Flag
No
