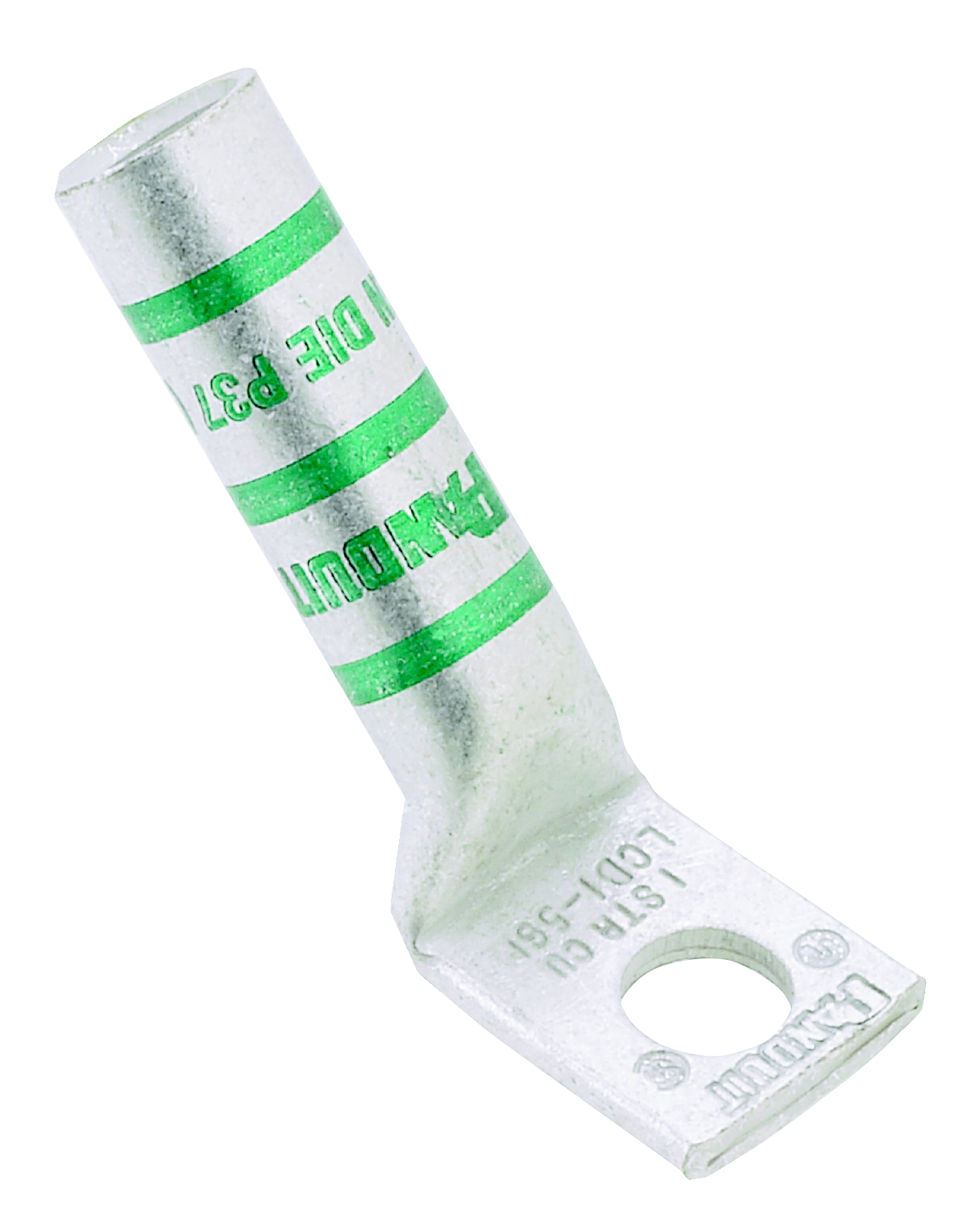

Product image for Panduit LCB1-56H-E Copper Compression Lug, 1 Hole, #1 AWG, Long Barrel, 5/16" (7.9mm) Stud, 45 Bent
Image thumbnail 0
Image thumbnail 1
Email

Panduit LCB1-56H-E Copper Compression Lug, 1 Hole, #1 AWG, Long Barrel, 5/16" (7.9mm) Stud, 45 Bent

Manufacturer: Panduit | Catalog # LCB1-56H-E | North Coast Part # 847266
$1,840.11/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Installation / Instruction Manual
One-hole, long barrel lug, #1 AWG wire, 5/16" stud hole, 45. angle tongue.

Technical Information

Angle
45
Barrel Length
1.36 in
Barrel Type
Long Barrel Length without Inspection Window
Color Coding
Green
Material
Copper
Number of Holes
1 Hole
Size
#1 AWG Code
Stud Hole Size
5/16 in
Stud Size
42,491 IN
Tongue Angle
45 degrees
Tongue Thickness
0.11 in
Tongue Type
Standard
Tongue Width
0.7 in
Type
Tin-Plated Copper Compression Connectors - Lugs
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug

General Product Info

12-Digit UPC
074983871612
Color
Green
GTiN
00074983871612
Product Type
Power Connectors
Product UPC
07498387161
UNSPSC
39121405

Dimensions

Length
2.03 Inch
Overall Length
2.03 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
