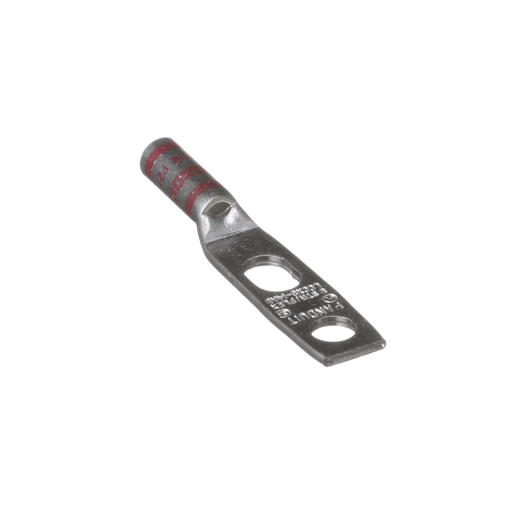

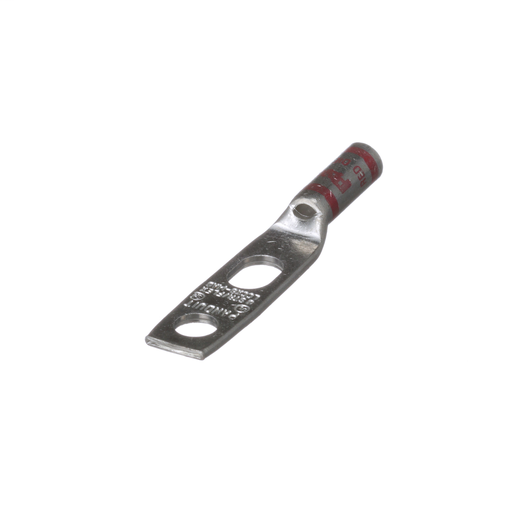

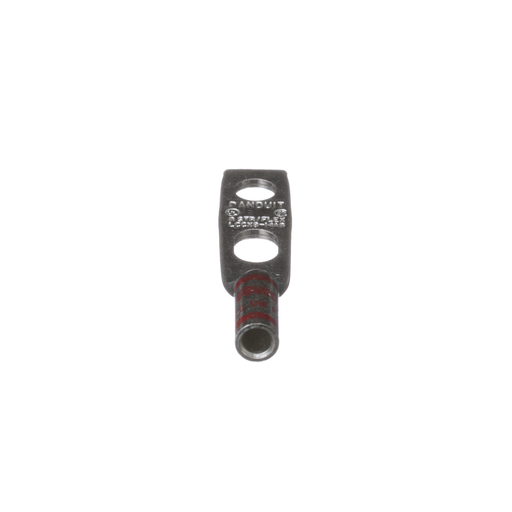

PAN LCCX8-14AB-L Cu,CompLug,2H,#8AF

Manufacturer: Panduit | Catalog # LCCX8-14AB-L | North Coast Part # 848198

$993.42/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Copper Compression Lug, 2 Hole, No. 8 American Wire Gauge (AWG) Flex, Long Barrel, 1/4 Inch (6.4 mm) Stud, Slotted Tongue, Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive, Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance, Generously beveled wire entry prevents bent back strands when inserting conductor into barrel, Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit and specified competitor crimping tools and dies, Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications, Available with NEMA hole sizes and spacing.

Technical Information

Angle
Straight
Barrel Length
0.7 in
Barrel Type
Long Barrel Length With Inspection Window
Color Coding
Red
Material
Copper
Number of Holes
2 Hole
Size
#8 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
0.25 in
Type
Compression Connectors - Lugs
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Copper Compression Lug - Flex

General Product Info

Color
Red
GTiN
00074983345014
Product UPC
07498334501
UNSPSC
39121405

Dimensions

Overall Length
2.23 in

Certifications and Compliance

Country of Origin
MX
