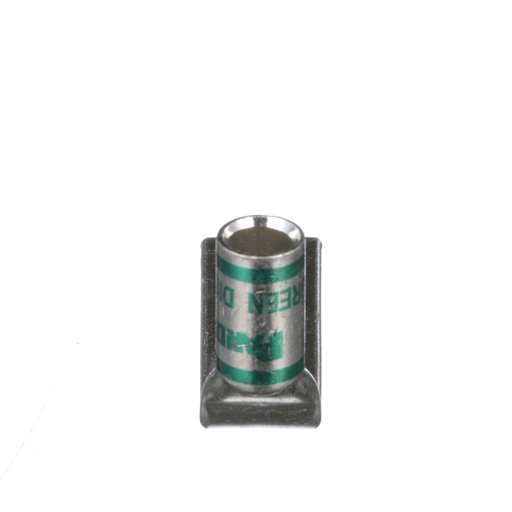

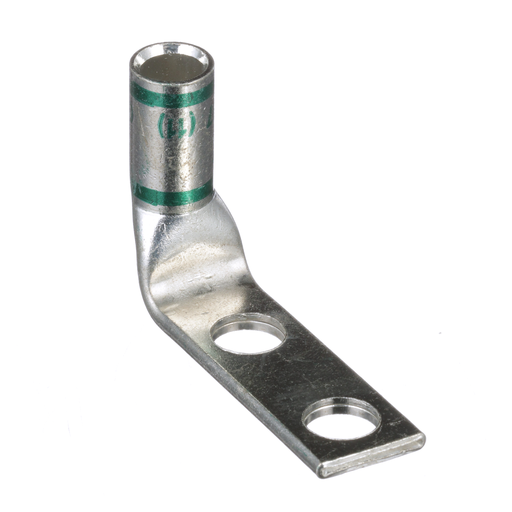

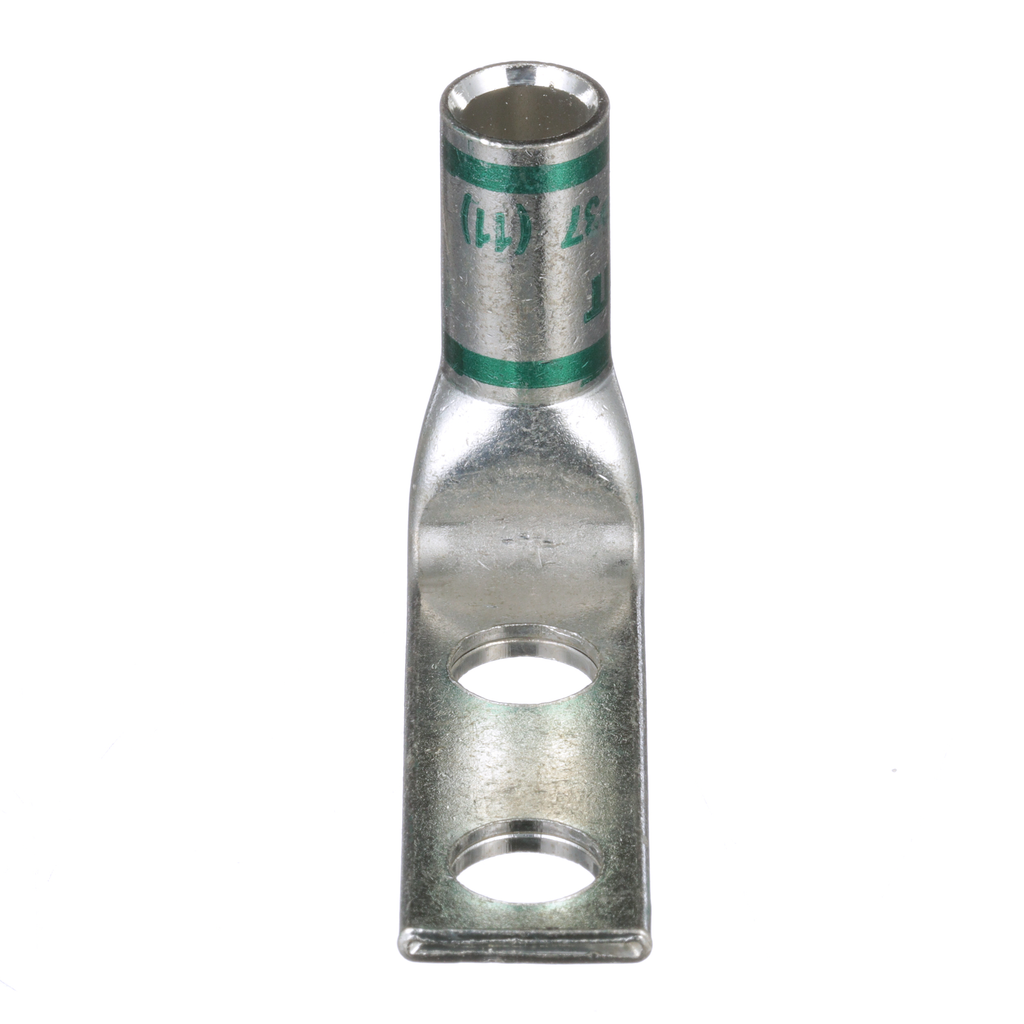

Panduit LCD1-38DF-E Pan-Lug™ Copper 2 Hole 90. Tongue Compression Lug

Manufacturer: Panduit | Catalog # LCD1-38DF-E | North Coast Part # 848222
$3,526.75/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual
Two-hole, standard barrel lug with window, #1 AWG wire, 3/8 stud hole, 1 hole spacing, 90. angle tongue.

Technical Information

Angle
90
Barrel Length
0.88 in
Barrel Type
Standard Barrel Length with Inspection Window
Color Coding
Green
Material
Copper
Number of Holes
2 Hole
Size
#1 AWG Code
Stud Hole Size
3 in
Stud Size
42950.00 IN
Tongue Angle
90 degrees
Tongue Thickness
0.11 in
Tongue Type
Standard
Tongue Width
0.75 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983568482
Color
Green
GTiN
00074983568482
Product Type
Power Connectors
Product UPC
07498356848
UNSPSC
39121405

Dimensions

Length
2.51 Inch
Overall Length
2.51 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
