PAN LCD10-14AF-L Pan-Lug™ LCD10-14A

Manufacturer: Panduit | Catalog # LCD10-14AF-L | North Coast Part # 848245
$2,912.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual

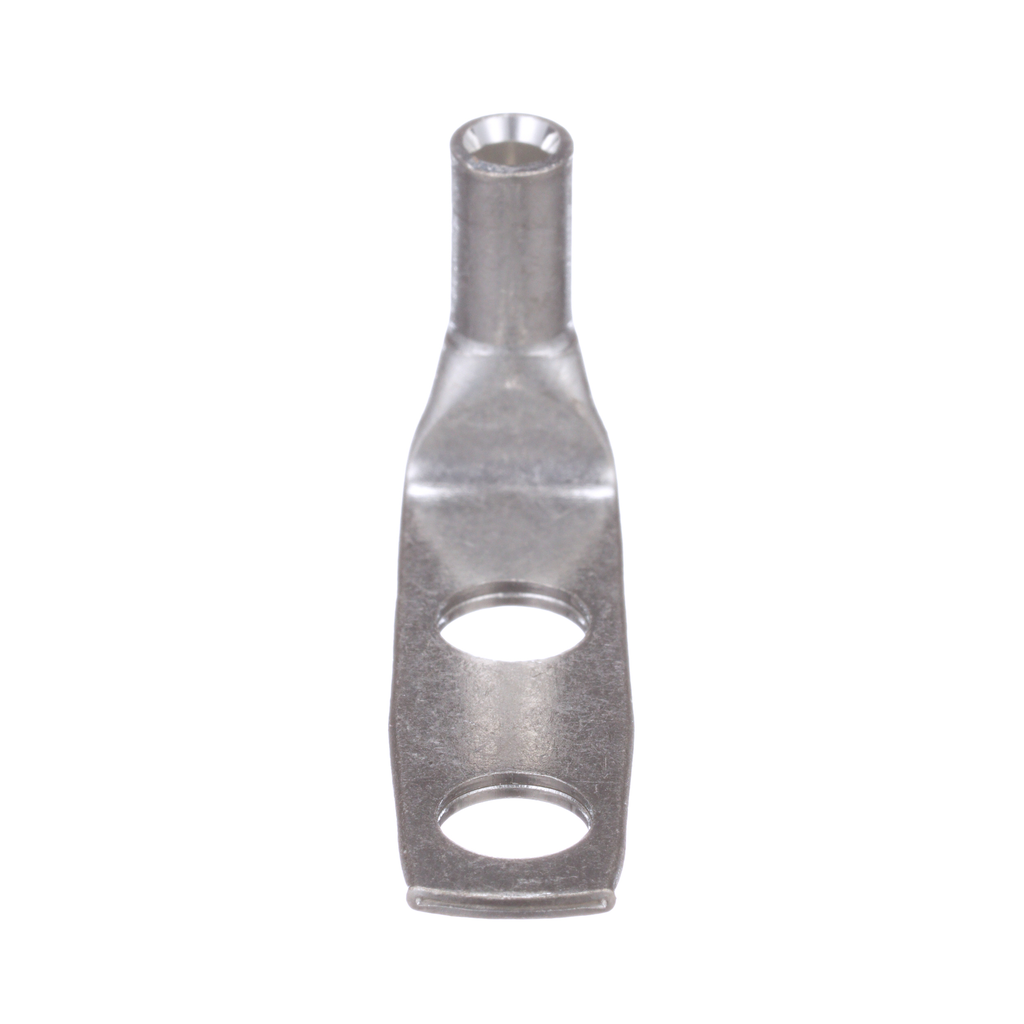

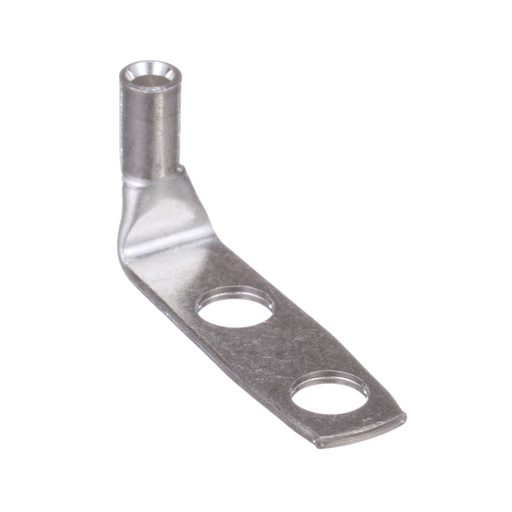

Two-hole, standard barrel lug with window, #10 AWG wire, 1/4 stud hole, .63 hole spacing, 90. angle tongue.

Technical Information

Angle
90
Barrel Length
0.38 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
2 Hole
Size
#14 #10 AWG Code STR, #12 #10 AWG Code SOL
Stud Size
1/4 In.
Tongue Angle
90 degrees
Tongue Thickness
0.05 in
Tongue Type
Standard
Tongue Width
0.42 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983973767
GTiN
00074983973767
Product UPC
07498397376
UNSPSC
39121405

Dimensions

Overall Length
1.56 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
