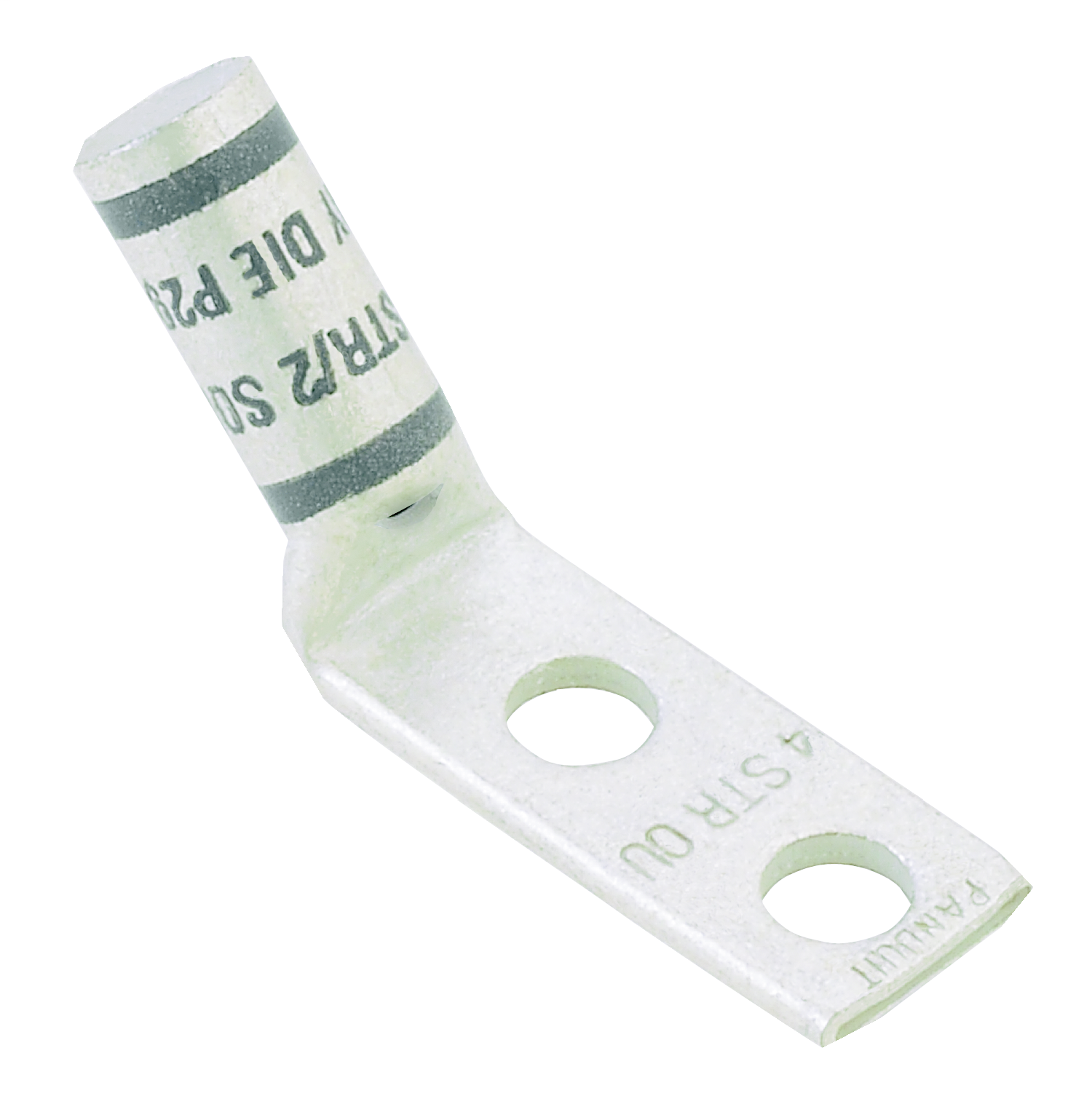

PAN LCDX2-12H-E CuLug,2Hole,#2AWG,1

Manufacturer: Panduit | Catalog # LCDX2-12H-E | North Coast Part # 848473

$2,771.16/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Copper Compression Lug, 2 Hole, No. 2 American Wire Gauge (AWG) Flex, 1/2 Inch (12.7 mm) Stud, 1.75 Inch (44.4 mm) Hole Spacing, 45 Degree Bent, Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive, Generously beveled wire entry prevents bent back strands when inserting conductor into barrel, Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit and specified competitor crimping tools and dies, American Bureau of Shipping Approved, Available with NEMA hole sizes and spacing.

Technical Information

Angle
45
Barrel Length
0.59 in
Barrel Type
Standard Barrel Length With Inspection Window
Color Coding
Brown
Material
Copper
Number of Holes
2 Hole
Size
#2 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
0.5 in
Type
Compression Connectors - Lugs
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Copper Compression Lug - Flex

General Product Info

Color
Brown
GTiN
00074983426973
Product UPC
07498342697
UNSPSC
39121405

Dimensions

Overall Length
3.66 in

Certifications and Compliance

Country of Origin
MX
