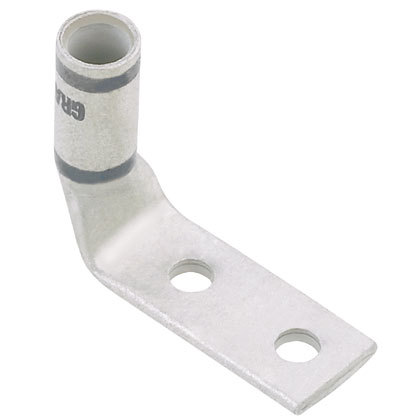

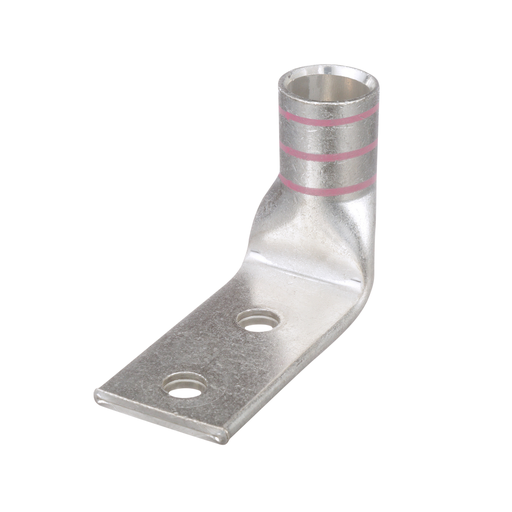

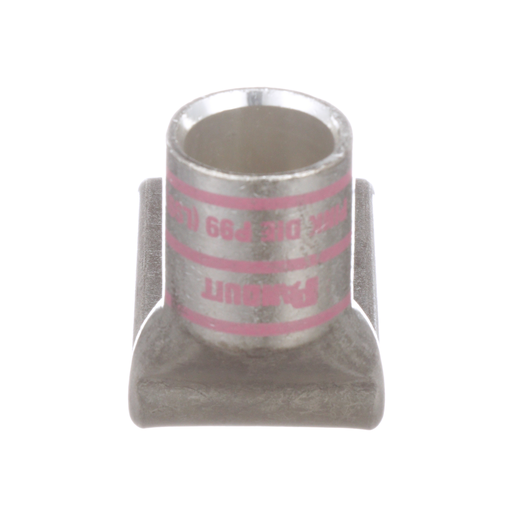

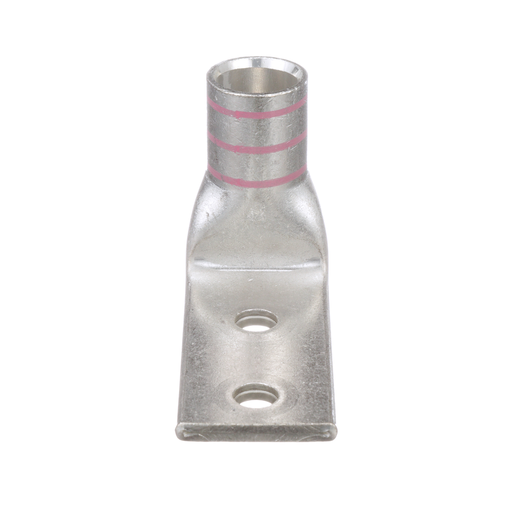

Product image for PAN LCDX500-12F-6 STDFlexLug,500mcm
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

PAN LCDX500-12F-6 STDFlexLug,500mcm

Manufacturer: Panduit | Catalog # LCDX500-12F-6 | North Coast Part # 848583
$15,972.71 /c (100 ea)
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Catalog Page Installation / Instruction Manual Specification Sheet
Two-hole, flex lug, 500 kcmil cable, 1/2 stud hole, 1.75 hole spacing, 90° angle tongue.

Technical Information

Angle
90
Barrel Length
1.48 in
Barrel Type
Standard Barrel Length With Inspection Window
Color Coding
Pink
Material
Copper
Number of Holes
2 Hole
Size
500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO
Stud Hole Size
1/2 in
Stud Size
42767.00 IN
Tongue Angle
90 degrees
Tongue Thickness
0.26 in
Tongue Type
Standard
Tongue Width
1.89 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983449880
Color
Pink
GTiN
00074983449880
Product Type
Power Connectors
Product UPC
07498344988
UNSPSC
39121405

Dimensions

Length
4-1/2 Inch
Overall Length
4.5 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
