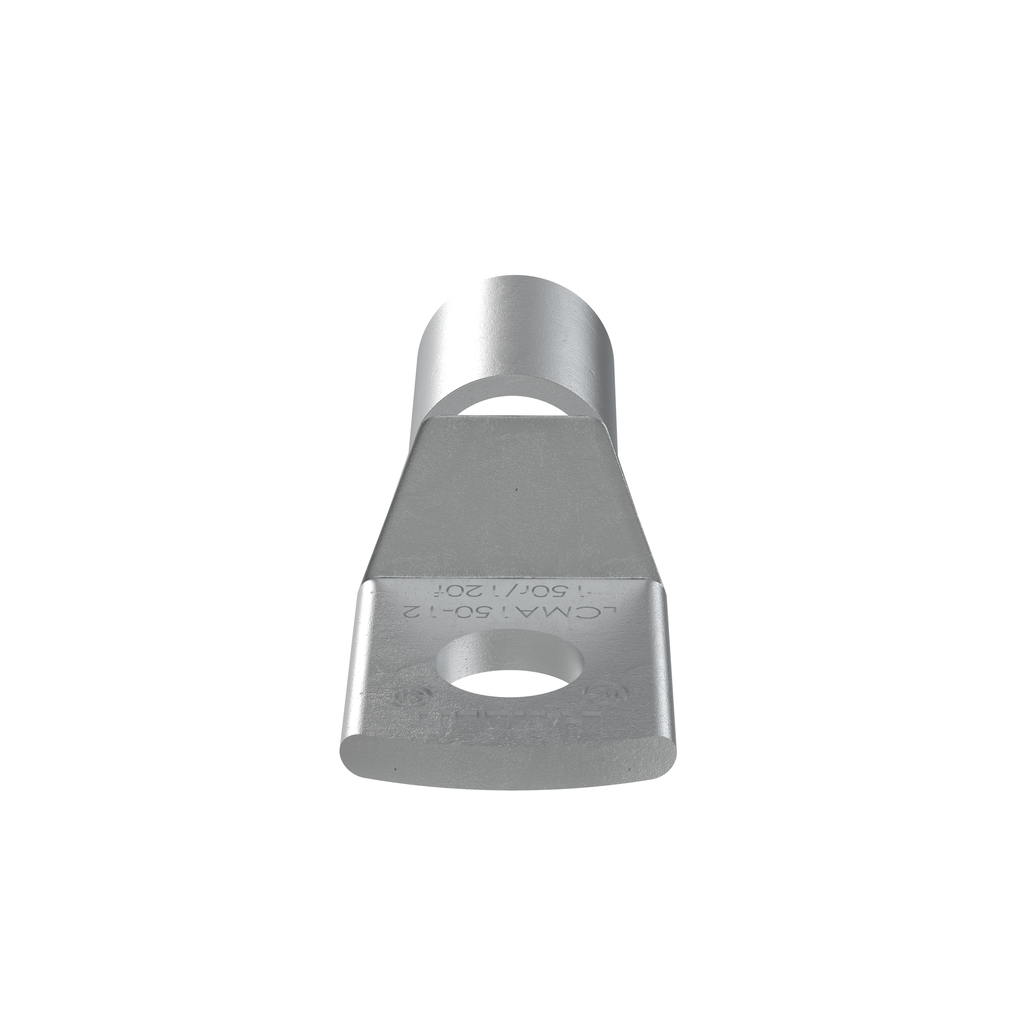

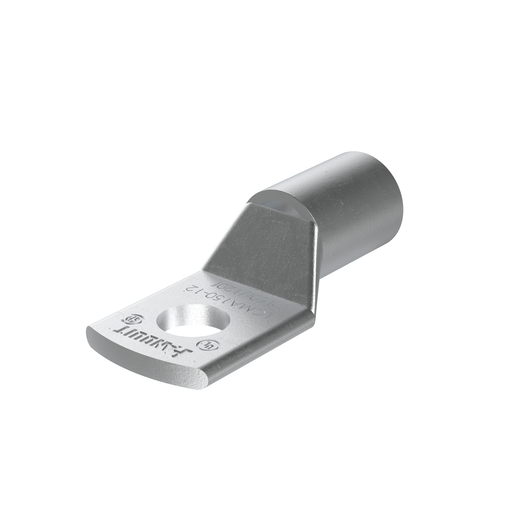

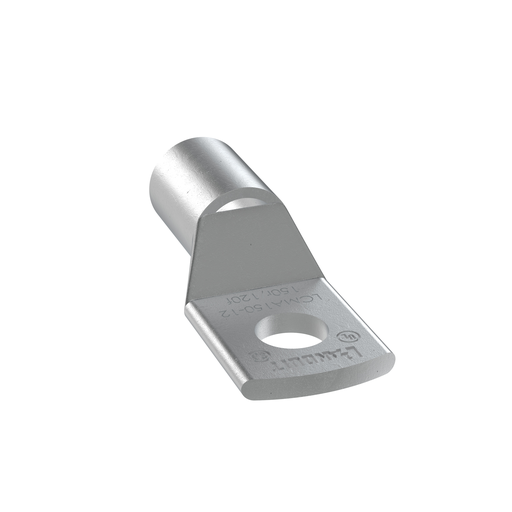

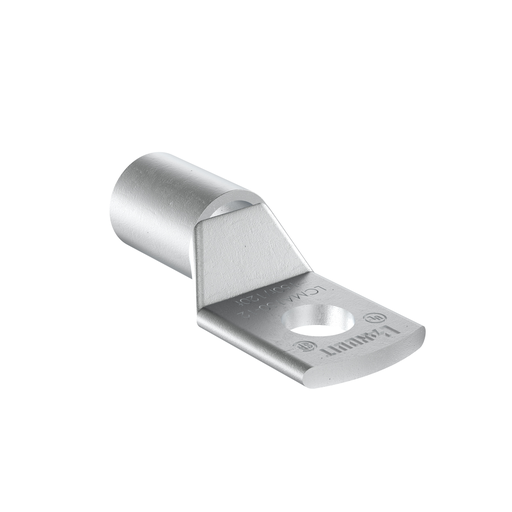

Product image for PAN LCMA150-12-X Pan-Lug™ LCMA150-1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

PAN LCMA150-12-X Pan-Lug™ LCMA150-1

Manufacturer: Panduit | Catalog # LCMA150-12-X | North Coast Part # 848657
$4,588.00/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual
The LCMA150-12-X Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Amperage
NA
Angle
Straight
Barrel Length
27.5 mm
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
NA
Stud Size
0.55 In.
Tongue Thickness
4.5 mm
Tongue Type
Round
Tongue Width
30.5 mm
Type
Metric Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983769612
GTiN
00074983769612
Product UPC
07498376961

Dimensions

Outer Diameter
0.82 in
Overall Length
70.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
AR
Standards and Certifications
  • Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
