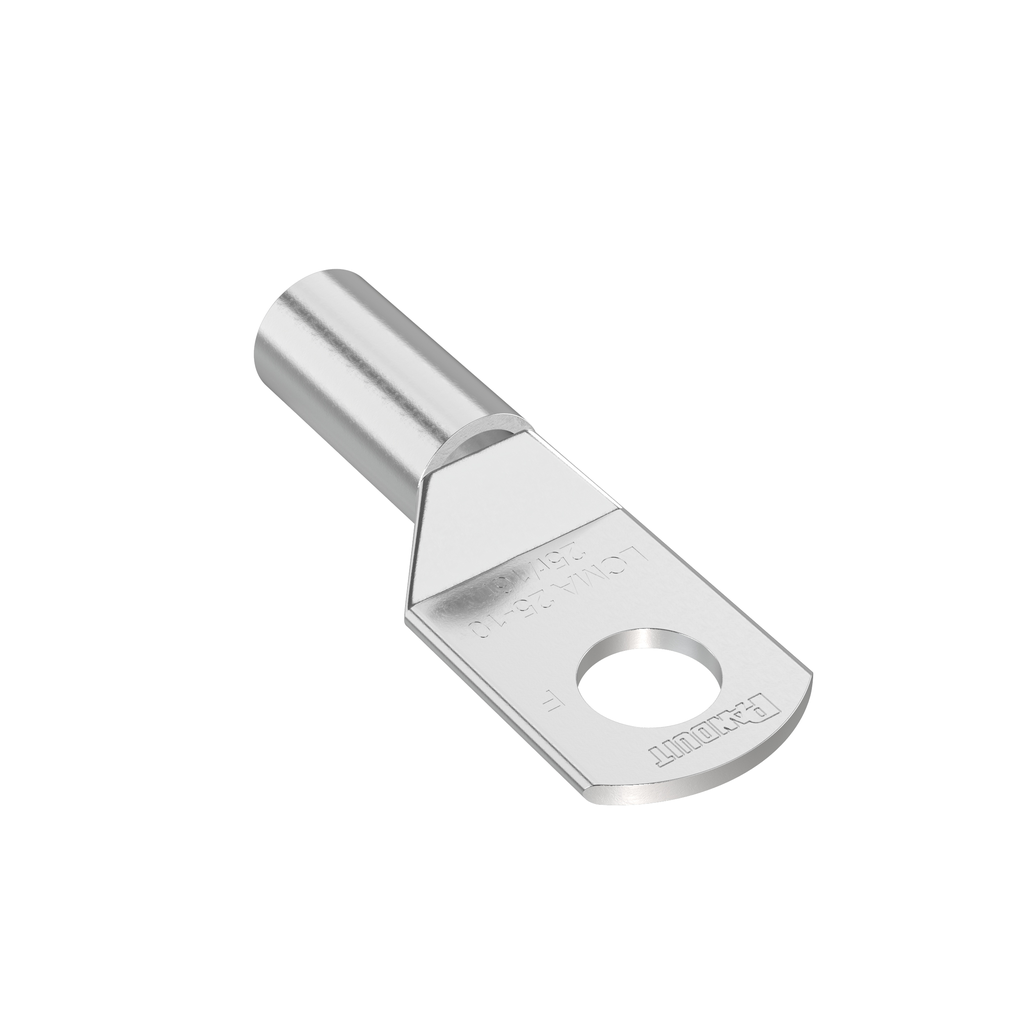

Product image for Panduit LCMA16-6-C Compression Lug, Metric, 16mm, Tin Plate Copper, Straight, One #10 Stud
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit LCMA16-6-C Compression Lug, Metric, 16mm, Tin Plate Copper, Straight, One #10 Stud

Manufacturer: Panduit | Catalog # LCMA16-6-C | North Coast Part # 848661
$345.11/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual

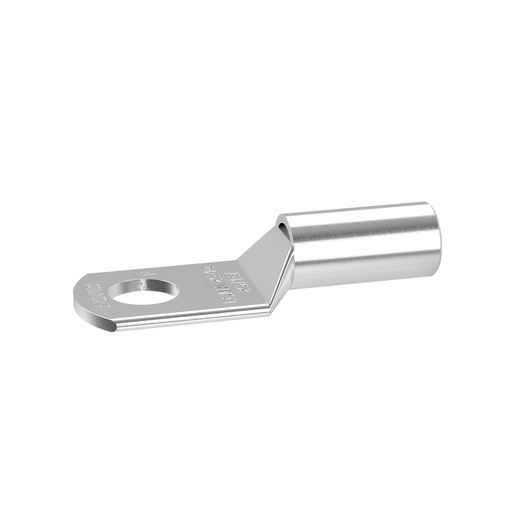

The LCMA16-6-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Technical Information

Amperage
65 Amp
Angle
Straight
Barrel Length
14.5 mm
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
NA
Stud Size
0.2362 in
Tongue Thickness
1.1 mm
Tongue Type
Round
Tongue Width
13 mm
Type
Metric Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983769339
GTiN
00074983769339
Product UPC
07498376933

Dimensions

Outer Diameter
0.28 in
Overall Length
34.3 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
AR
Standards and Certifications
  • Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
