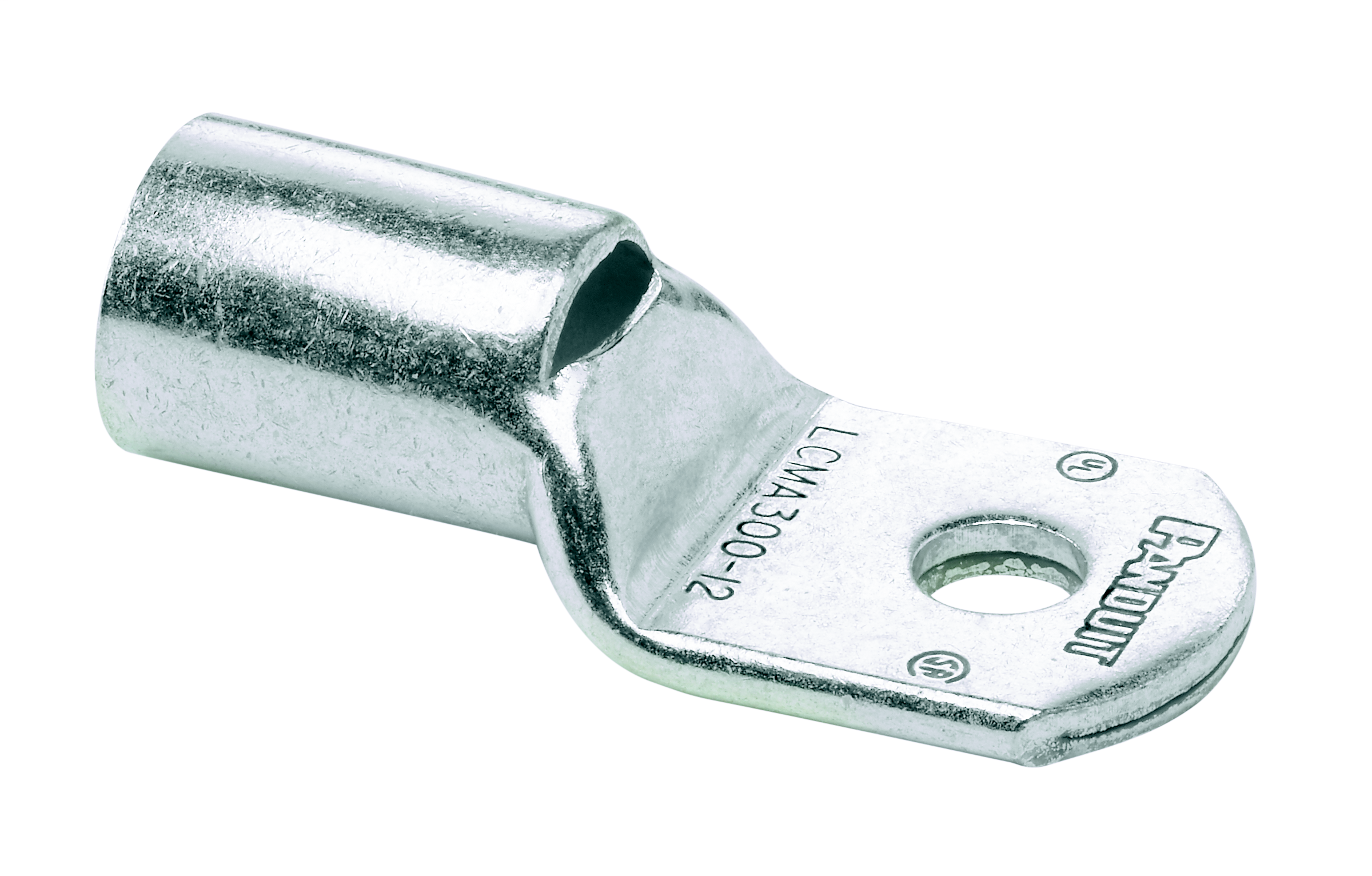

PAN LCMA300-12-5 CuMetricLug,300mm²

Manufacturer: Panduit | Catalog # LCMA300-12-5 | North Coast Part # 848671

$5,940.50/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Copper Compression Metric Lug, 1 Hole, 300 millimeters squared Wire, M12 Stud, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed, UL Recognized, and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit tools and dies, Product information marked on connector for selection and installation, Rounded tongue convenient for use in tight spaces, Internally beveled wire entry for fast and easy installation.

Technical Information

Angle
Straight
Barrel Length
40.3 mm
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
300
Material
Copper
Number of Holes
1 Hole
Stud Size
0.4724 in
Type
Tin-Plated CopperCompression Connectors - Metric Lugs
Voltage
35,000 Volt

Packaging

Pkg Qty
5

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Lug

General Product Info

GTiN
00074983769735
Product UPC
07498376973
UNSPSC
39121405

Dimensions

Overall Length
94.5 mm

Certifications and Compliance

Country of Origin
IN
