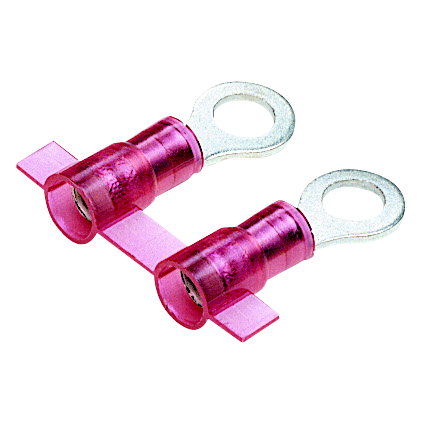

PAN PNF18-4R-3K Ring,Funnel,Nylon,2

Manufacturer: Panduit | Catalog # PNF18-4R-3K | North Coast Part # 849753

$392.73/m (1000 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time. Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B.

Technical Information

Barrel Length
0.39 in
Barrel Type
Grip Sleeve
Color Coding
Red
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
221 degrees F
Min Operating Temperature
105 C
Size
M2.5
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Ring Terminal
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
3000

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Reel Smart

General Product Info

Color
Red
Finish
Tinned
GTiN
00074983811298
Product UPC
07498381129
UNSPSC
39121409

Dimensions

Overall Length
0.78 in
Width
0.25 in

Certifications and Compliance

CA Prop65 Warning
No
Country of Origin
MX
