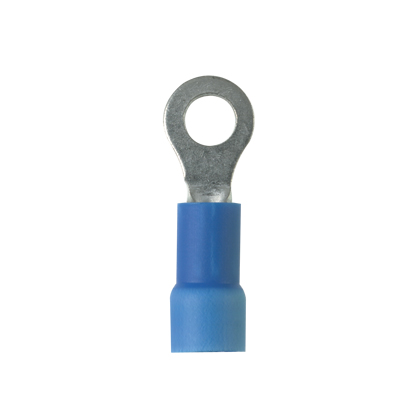

Product image for PAN PV14-56RX-L Pan-Term® PV14-56RX
Image thumbnail 0
Image thumbnail 1
Email

PAN PV14-56RX-L Pan-Term® PV14-56RX

Manufacturer: Panduit | Catalog # PV14-56RX-L | North Coast Part # 849882
$212.28/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
Ring Terminal, 16 . 14 AWG, 5/16" stud size, vinyl insulated, expanded insulation for large wire O.D.

Technical Information

Barrel Length
0.58 in
Barrel Type
Brazed Seam,Insulation Support
Color Coding
Blue
Conductor Size
14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
167 degrees F
Size
5/16"
Standard
CSA,E2186,UL
Stud Hole Size
M8
TC Connection
Expanded
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Bell End
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983120468
Color
Olive, Orange, Royal Blue and Yellow
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983120468
Product Type
Terminals
Product UPC
07498312046
UNSPSC
39121409

Dimensions

Length
1.16 Inch
Overall Length
1.16 in
Width
11.7 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212
