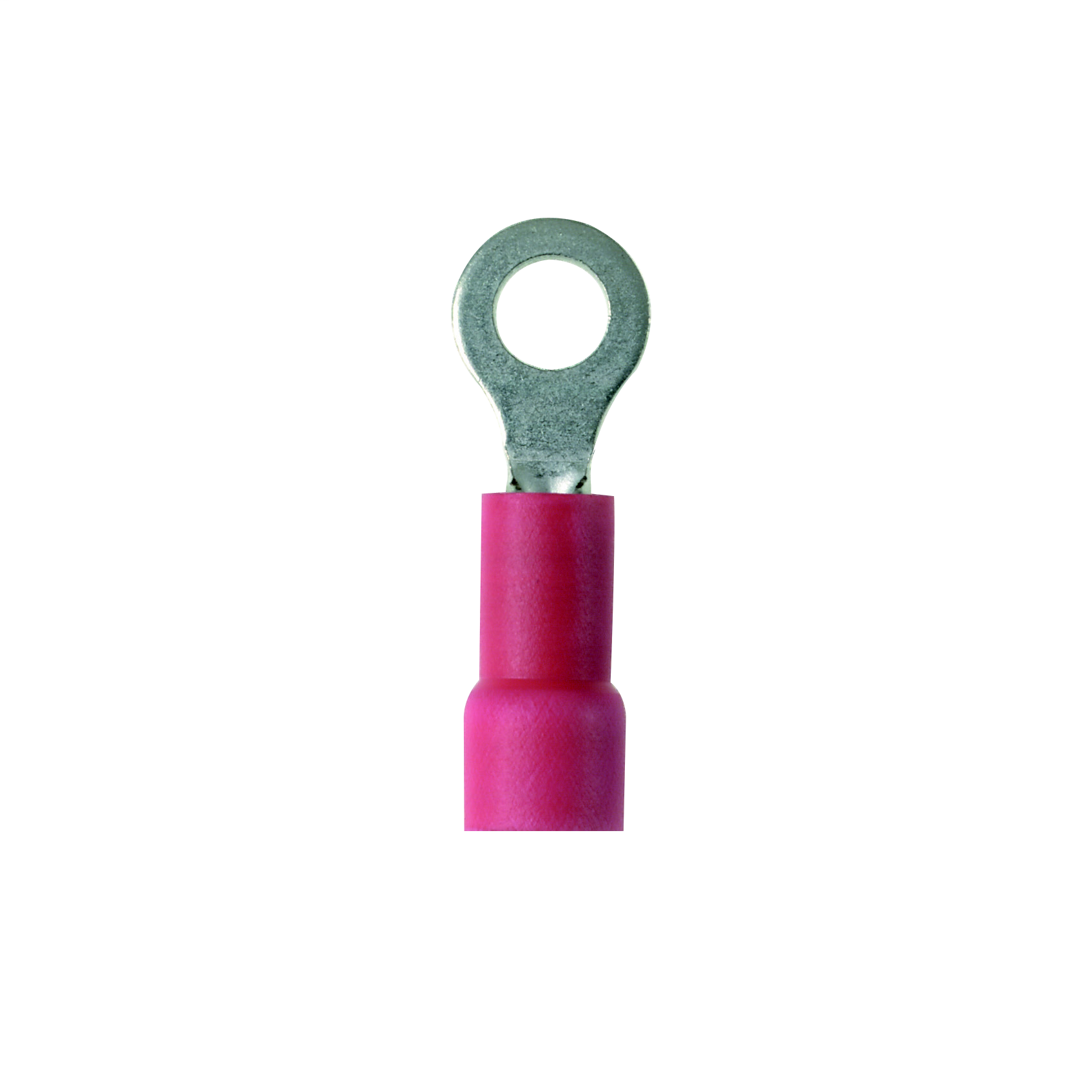

Product image for Panduit PV18-56RX-LY Ring Terminal, Expanded Vinyl Insulation, 22 - 18 AWG, 5/16" Stud Size
Image thumbnail 0
Image thumbnail 1
Email

Panduit PV18-56RX-LY Ring Terminal, Expanded Vinyl Insulation, 22 - 18 AWG, 5/16" Stud Size

Manufacturer: Panduit | Catalog # PV18-56RX-LY | North Coast Part # 849918
$165.31/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
Ring Terminal, 22 . 18 AWG, 5/16" stud size, vinyl insulated, expanded insulation for large wire O.D.

Technical Information

Barrel Type
Brazed Seam,Insulation Support
Base Material
Copper
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Insulation Type
Vinyl
Material
Copper
Max Operating Temperature
221 degrees F
Max Voltage
600 V
Size
M8
Stud Hole Size
M8
TC Connection
Expanded Entry
Temperature Rating
221 F
Type
Ring Terminal, Vinyl Expanded Insulation
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-term

General Product Info

12-Digit UPC
074983121717
Color
Red
Finish
Tin Plated
GTiN
00074983121717
Product Type
Terminals
Product UPC
07498312171
UNSPSC
39121409

Dimensions

Length
1.17 Inch
Overall Length
1.17 in
Width
.46 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
