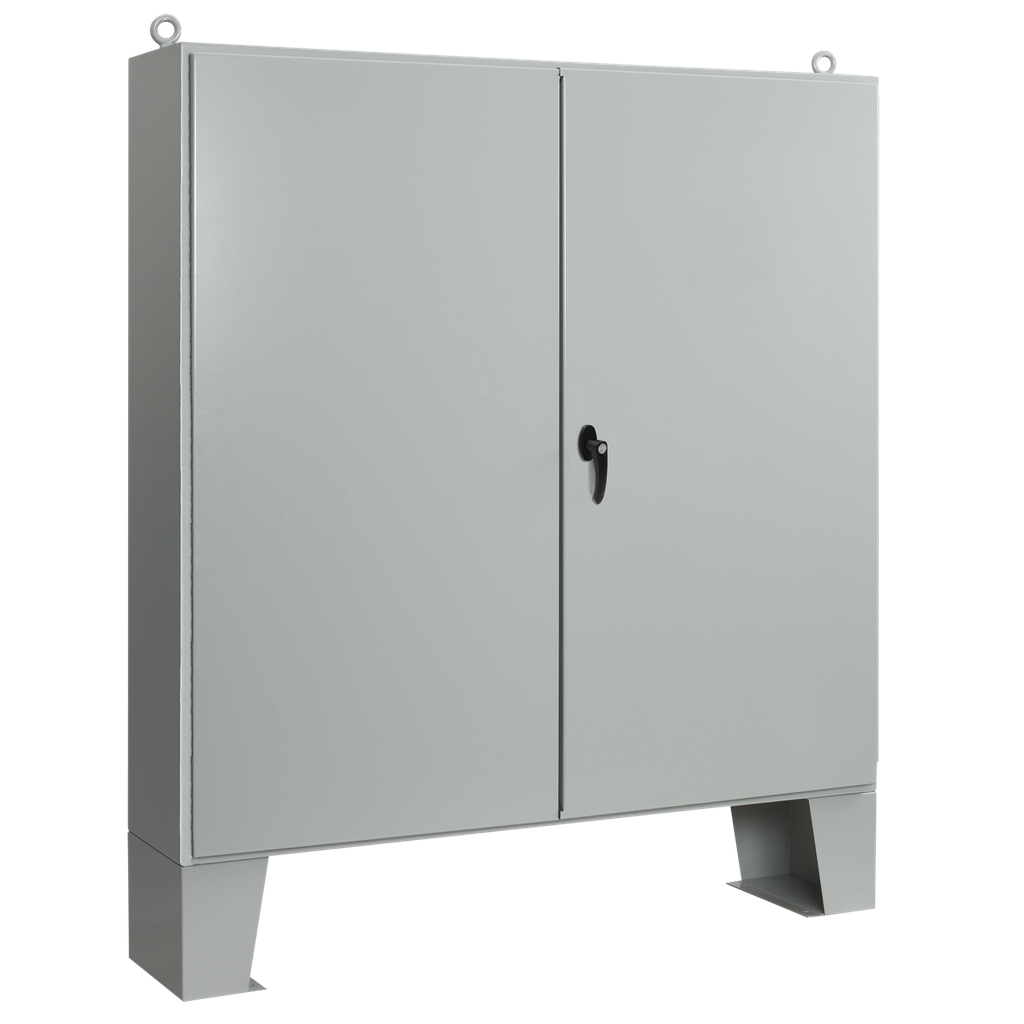

Product image for Hoffman A726016ULPG Two-Door with Floor Stands, Type 12, 72.06" x 60.06" x 16.06", Gray, Steel
Email

Hoffman A726016ULPG Two-Door with Floor Stands, Type 12, 72.06" x 60.06" x 16.06", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A726016ULPG | North Coast Part # 850434
$4,140.14/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Enclosures have gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure. Because there is no centerpost, it is simple to install and remove panels.

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Cover Type
Hinged with 3-Point Latch
Gauge
12 AWG
Material
Steel
Mounting Type
Floor Stand
Size
72.06x60.06x16.06 in
Standard
CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Type
Single Lock, Double Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510384395
Color
Gray
Finish
Powder Coated
GTiN
00783510384395
Product UPC
78351038439
Weight
529 lb

Dimensions

Depth
408 mm
Height
1830 mm
Length
24 Inch
Thickness
2.66 mm
Width
1526 mm
Features
  • Seams continuously welded and ground smooth; no holes or knockouts
  • 3-point latch mechanism operated by oil-tight key-lock handle
  • Gasketed overlapping doors with no centerpost
  • Concealed, easy-to-remove hinges
  • Data pocket is high-impact thermoplastic
  • 12-in. floor stands bolted-on to enclosure
  • Heavy-duty lifting eyes
  • Panel supports
  • Oil-resistant gasket
  • Collar studs for mounting optional panel
  • Bonding provision on door
  • Provision for mounting fluorescent light
