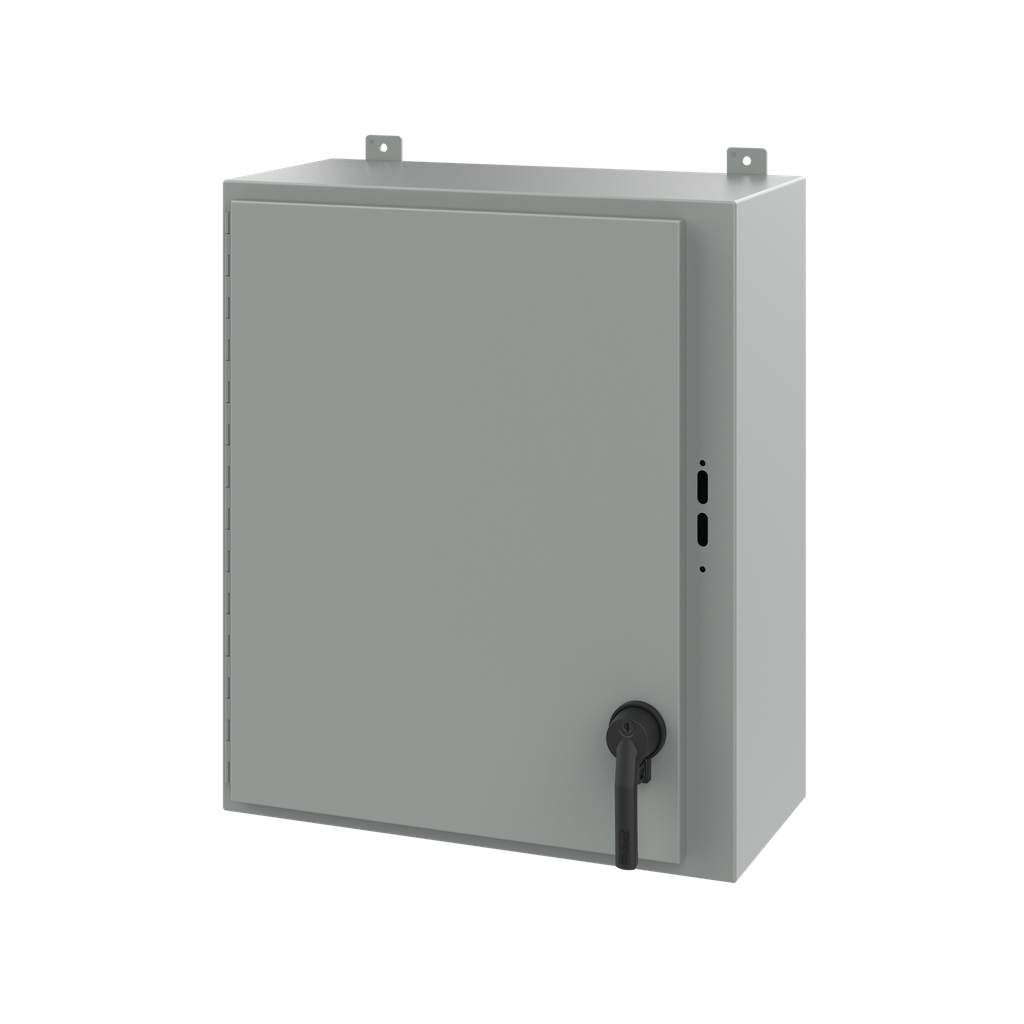

Product image for Hoffman A30SA2612LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 30" x 25.38" x 12", Steel
Email

Hoffman A30SA2612LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 30" x 25.38" x 12", Steel

Manufacturer: nVent Hoffman | Catalog # A30SA2612LPPL | North Coast Part # 854488
$1,387.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Technical Information

Applications
Accepts Major Brand Disconnect Switches and Circuit Breakers
Cover Type
Removable, Continuous Hinged with Powerglide Handle
Gauge
14
IP Rating
65
Material
Steel
Mounting Type
Wall
Size
30.00x25.38x12.00 in
Type
Preferred Cutout

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510403898
Color
White Inside, ANSI 61 Gray Outside
Finish
Powder Coated
GTiN
00783510403898
Product UPC
78351040389
Used With
Disconnect Switches
Weight
76.5 lb

Dimensions

Depth
12 Inch
Height
30 Inch
Length
35 Inch
Thickness
1.9 mm
Width
25.38 in
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
