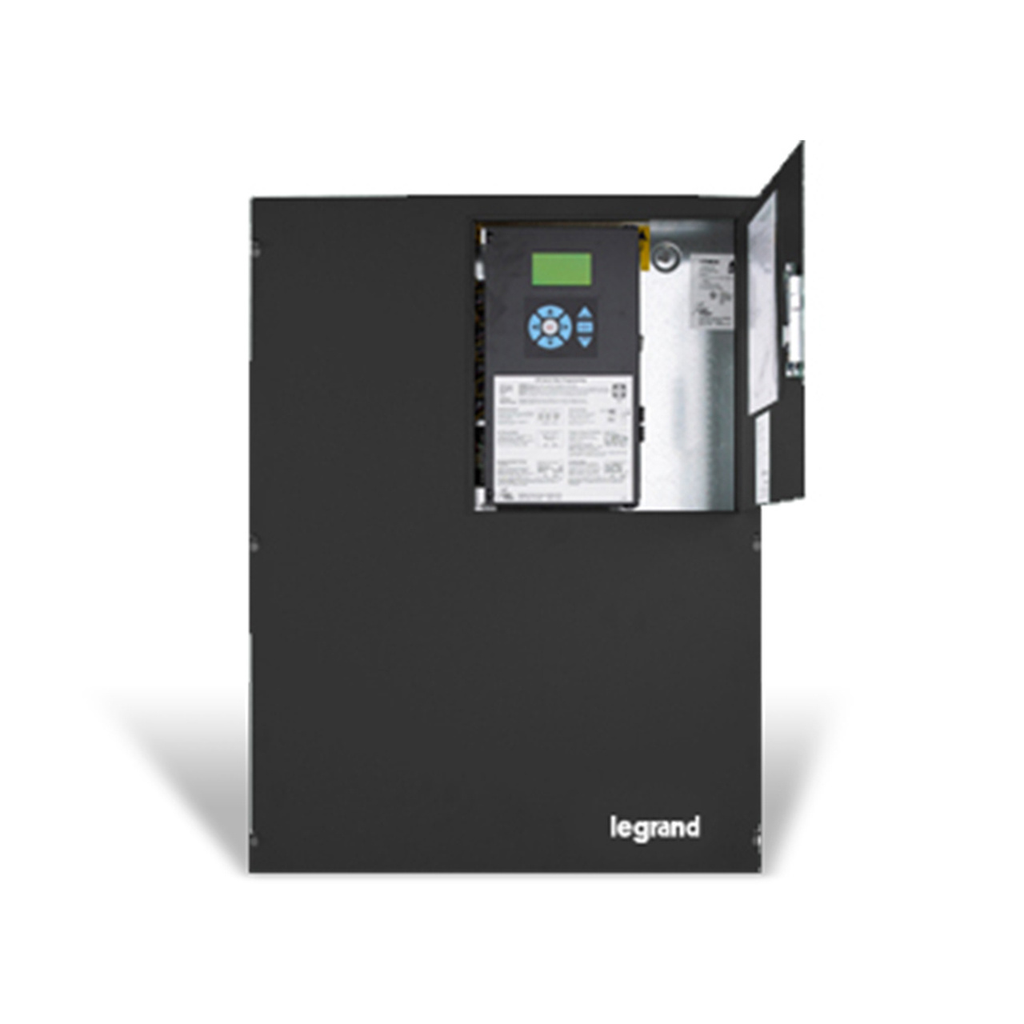

Product image for LP24 PANEL 4 RELAY115/277 SURFACE
Email

LP24 PANEL 4 RELAY115/277 SURFACE

Manufacturer: Wattstopper | Catalog # LP24S-4-115 | North Coast Part # 854824
$2,416.64/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
WattStopper's LP24 Peanut Plus Lighting Control Panels provide simple, effective zone-based control of exterior and interior lighting in small applications. Panels control up to eight channels or zones of lighting. Zones respond to control signals from the system clock (or other signalling device) to turn lighting on and off. LP24 Panels ship pre-assembled in easy-to-install packages. They consist of relays, a system clock, panel intelligence, power supply, large tub with DIN rails for mounting up to twelve contactors (shipped separately) and cover.

Technical Information

Applications
Lighting Panel for switching and scheduling
Cable Size
10 - 14 AWG
Enclosure
NEMA 1
Operating Temperature
0 - 90 Degrees C
Size
24"w X 32"h X 4.5"d
Type
Lighting Control Panel

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182929177
GTiN
00754182929177
Product UPC
75418292917

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • System clock provides time scheduled or astronomic control
  • Compatible with AS-100 Automatic Control Switches for local override control
  • DIN rail accommodates up to 12 four-pole contactors
  • Simple and effective interior and exterior lighting control
  • Controls up to eight zones
