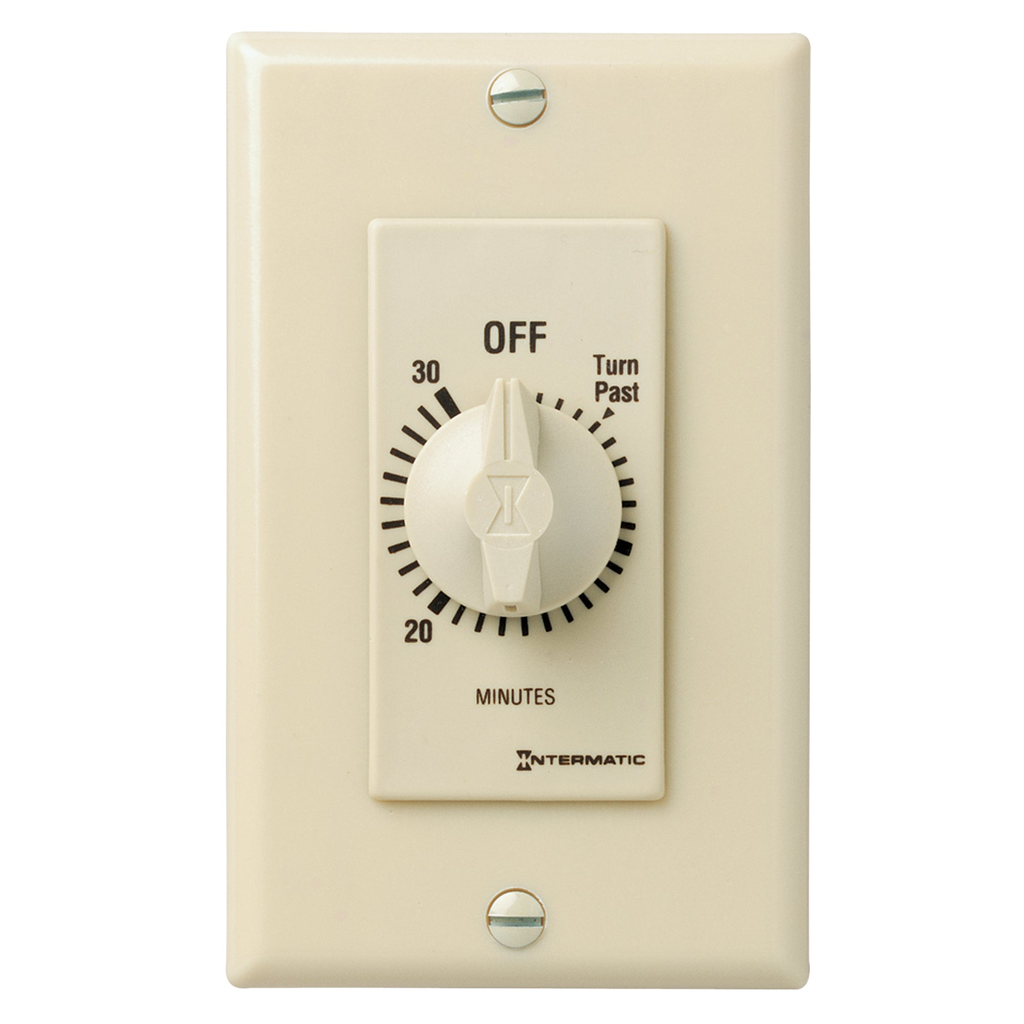

Product image for Intermatic FD430M 30 Minute 125 to 277 VAC 60 Hz DPST Ivory Countdown Timer
Image thumbnail 0
Image thumbnail 1
Email

Intermatic FD430M 30 Minute 125 to 277 VAC 60 Hz DPST Ivory Countdown Timer

Manufacturer: Intermatic | Catalog # FD430M | North Coast Part # 85722
$161.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
DPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control
Connection Type
Teeter Type
Contact Configuration
2 NO
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
2 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
DPST
TC Connection
Teeter Type
Type
Decorator Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275185999
Color
Ivory
GTiN
00078275185999
Product UPC
07827518599
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 30-Minute timer
  • DPST (Double-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
