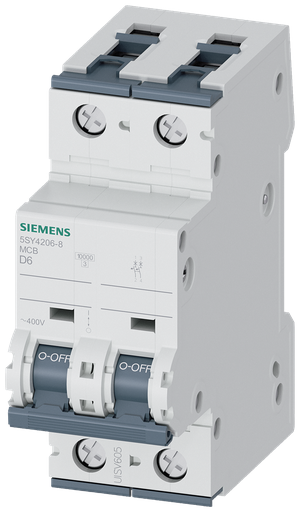

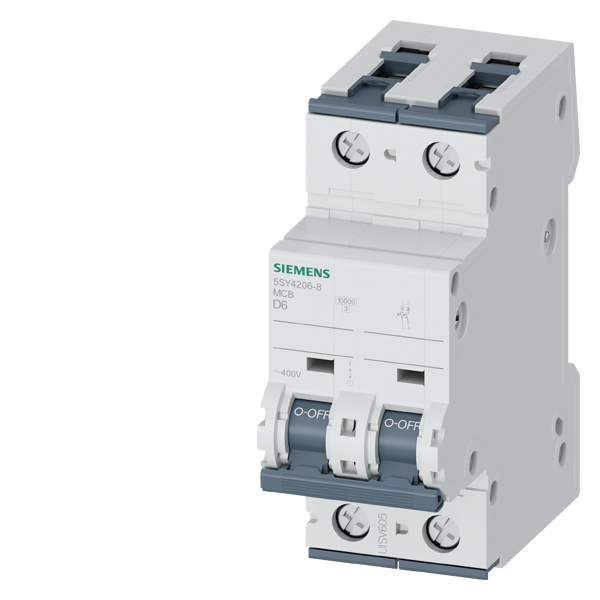

Siemens 5SY4206-8 5SY4 MCB, 2P,4

Manufacturer: Siemens | Catalog # 5SY4206-8 | North Coast Part # 859342
$104.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 2 Poles, 480/277V, 6A, 5kA, standard frame, Magnetic trip point 10 to 20 In

Technical Information

Amperage
6 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
6 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Short Circuit Current
5 kA
Standard
CE,UL 1077,CSA 22.2 NO. 235,EN 60 898,IEC,EN 60 947-2
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554875996
Class
D
GTiN
00754554875996
Product UPC
75455487599
Weight
0.680 lb

Dimensions

Height
3-1/4 Inch
Length
3-3/4 Inch
Width
1.650 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.028 kg
Green End-of-Life CO2
0.328 kg
Green Manufacturing CO2
1.141 kg
Green Total CO2
22.064 kg
Green Transport-to-DC CO2
0.239 kg
Green Use-Phase CO2
20.328 kg
