Hubbell HBL1547 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Straight Blade Connector

Manufacturer: Hubbell / Kellems | Catalog # HBL1547 | North Coast Part # 861
$36.15/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
15 Amp
Horsepower
0.50 hp
Material
Thermoplastic
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C without Impact
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Elastogrip®

General Product Info

12-Digit UPC
783585013039
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585013039
Product Series
Elastogrip
Product UPC
78358501303
Weight
0.2 lb

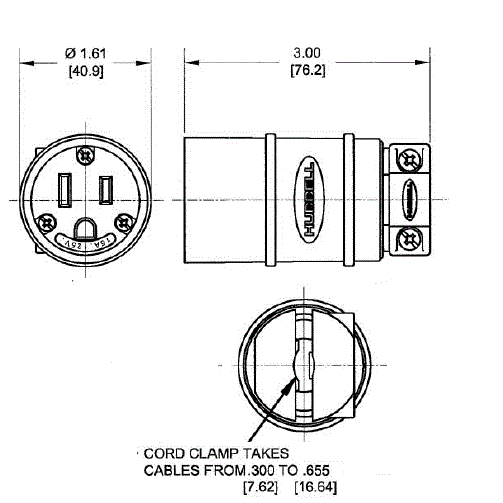

Dimensions

Height
3 Inch
Length
3 Inch
Width
1.61 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoplastic elastomer housing
  • Dust and moisture seal around cord
  • Dust-Tight
