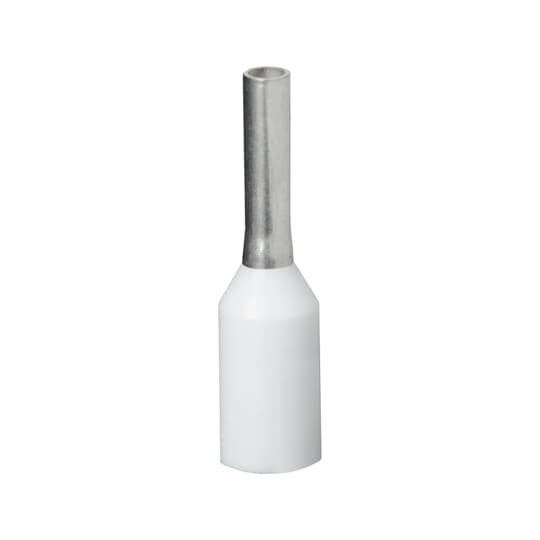

Product image for Thomas & Betts F2022 .61 Inch Length 20 AWG .5 mm.. Wire Range Nylon Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Thomas & Betts F2022 .61 Inch Length 20 AWG .5 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2022 | North Coast Part # 862
$80.97 /c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn opens monday 5:00am pt
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length .610 Inches/15.5mm, Pin Length .394 Inches/10mm, Pin Diameter .043 Inches/1.1mm, Base Diameter .098 Inches/2.5mm, Wire Range 20 AWG/.5mm2, Color White, Copper, Tin Plated

Technical Information

Conductor Size
20 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
10 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
20 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210339870
Color
White
Finish
Electro Tin Plated
GTiN
05414363151067
Product UPC
78621033987

Dimensions

Overall Length
0.61 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
