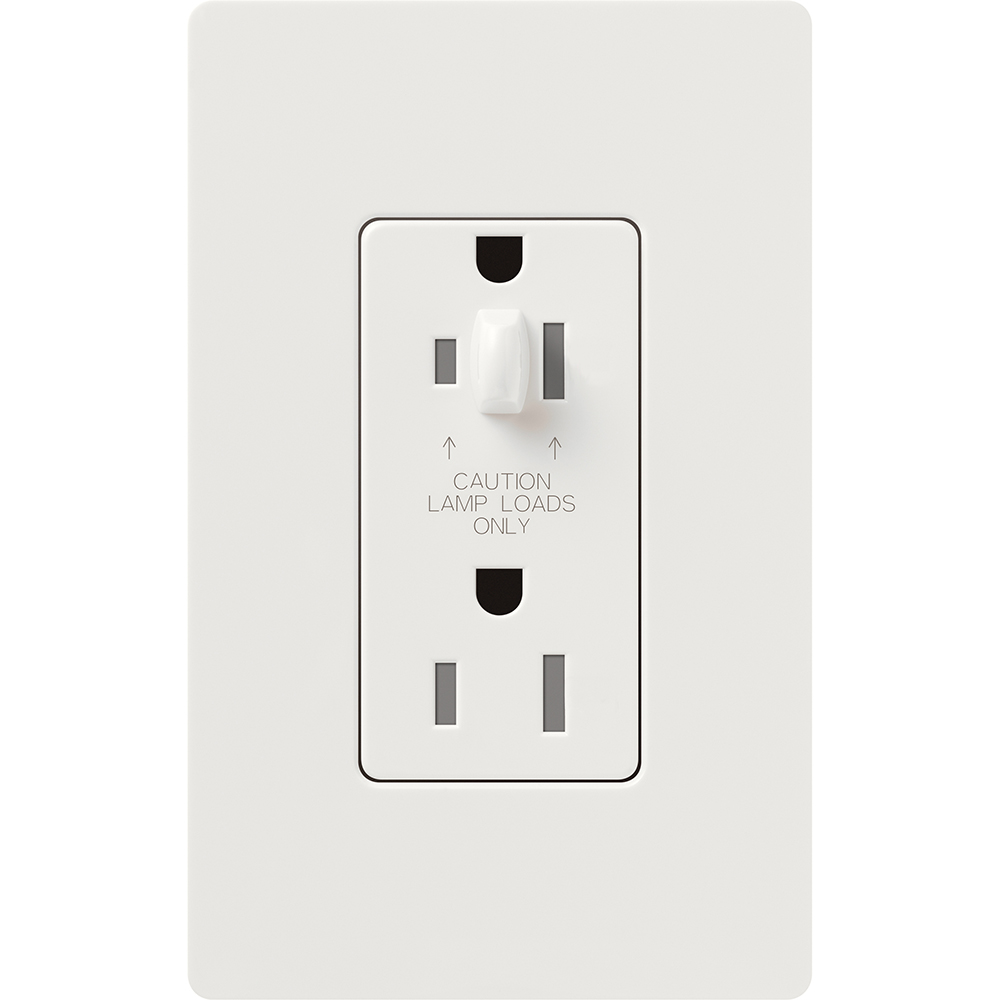

Product image for Lutron CAR-15-HDTR-WH CLARO 15 A TMPR
Email

Lutron CAR-15-HDTR-WH CLARO 15 A TMPR

Manufacturer: Lutron | Catalog # CAR-15-HDTR-WH | North Coast Part # 865859
$72.58/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Top half for dimming. Projecting nub prevents standard plug from being used. Requires replacement plug for dimming table and floor lamps. Bottom half is a general use receptacle and will fit standard duplex plugs. Tamper resistant shutter mechanism.

Technical Information

Amperage
15 Amp
Applications
Lighting Control
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
75 in
Standard
CSA,NOM,UL
TC Connection
Screw Terminal
Temperature Rating
0 to 40 degrees C
Type
Designer, Tamper-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Designer™

General Product Info

12-Digit UPC
027557779302
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00027557779302
Product UPC
02755777930

Certifications and Compliance

Country of Origin
China
Features
  • Features on receptacle(s) for dimming use reject standard plugs
  • Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
  • Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
  • Specification grade construction
  • Back wire installation capable
  • Receptacle face compatible with NEMA designer and Nova T opening wallplates
  • Plug may be used with standard receptacles and with new receptacles designed for dimming use
  • Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
  • Plug uses split-shell design for easy wiring and the ability to control cord exit direction
  • Top half for dimming
  • Projecting nub prevents standard plug from being used
  • Requires replacement plug for dimming table and floor lamps
  • Bottom half is a general use receptacle and will fit standard duplex plugs
  • Tamper resistant shutter mechanism.
Standards and Certifications
  • UL
  • CSA
  • NOM
