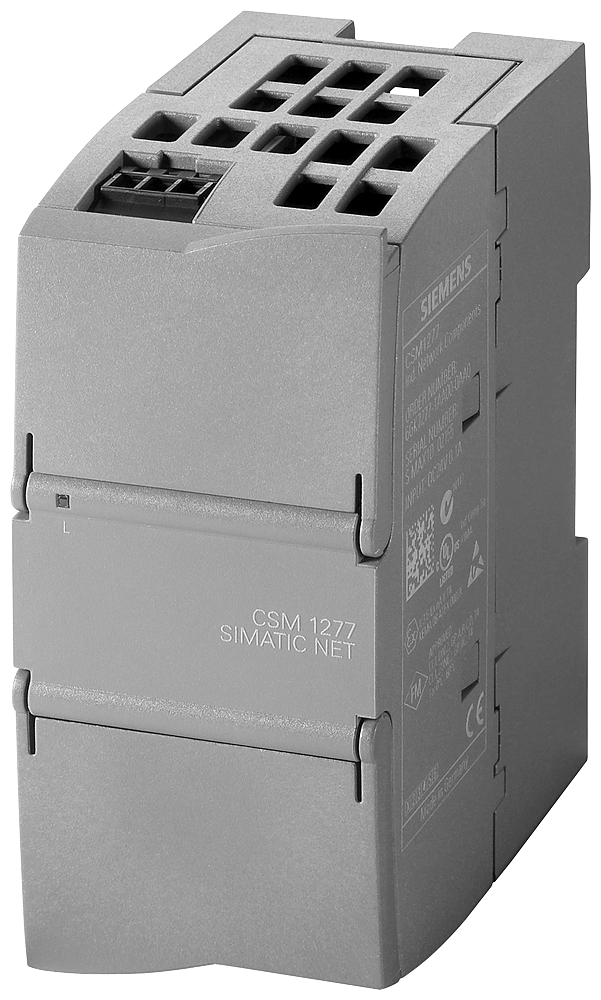

Siemens 6GK72771AA100AA0 COMPACT SWITCH

Manufacturer: Siemens | Catalog # 6GK72771AA100AA0 | North Coast Part # 866029
$527.83/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
COMPACT SWITCH MODULE CSM 1277 CONNECTION SIMATIC S7-1200 AND UP TO 3 FURTHER IND. ETHERNET USERS WITH 10/100 MBIT/S UNMANAGED SWITCH, 4 RJ45 PORTS, EXT. 24V DC POWER SUPPLY, LED DIAGNOSTICS, S7-1200 MODULE INCL. ELECTRONIC MANUAL ON CD

Technical Information

Amperage
0.07 Amp Current Consumption
Current
0.07 Amp
IP Rating
IP20,IP20
Max Current
0.07 A
Max Operating Temperature
60 degrees C
Min Operating Temperature
0 degrees C
Mounting Type
35 mm DIN Rail/Wall
Net Weight
0.496 lb
Number of Ports
0
Power Consumption
1.6 W
Standard
EN 61000-6-2,EN 61000-6-4
Temperature Rating
0 - 60 degrees C Ambient
Type
Unmanaged, Compact
Voltage
24/19.2-28.8 VDC

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
040892607208
Environmental Conditions
95% RH
GTiN
00040892607208
Product UPC
04089260720
Used With
Simatic S7-1200 Controllers
Weight
0.496 lb

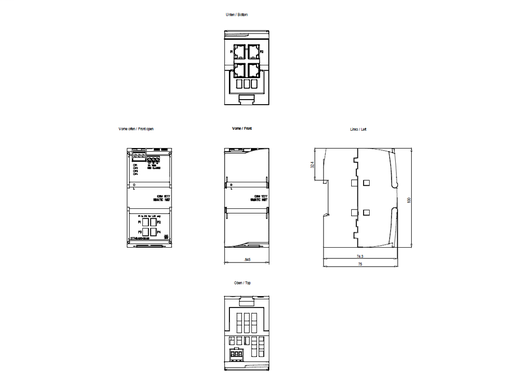

Dimensions

Depth
75 mm
Height
2.24 Inch
Length
7.24 Inch
Width
5.750 in

Certifications and Compliance

Certifications
EN 61000-6-2,EN 61000-6-4
Country of Origin
Germany
