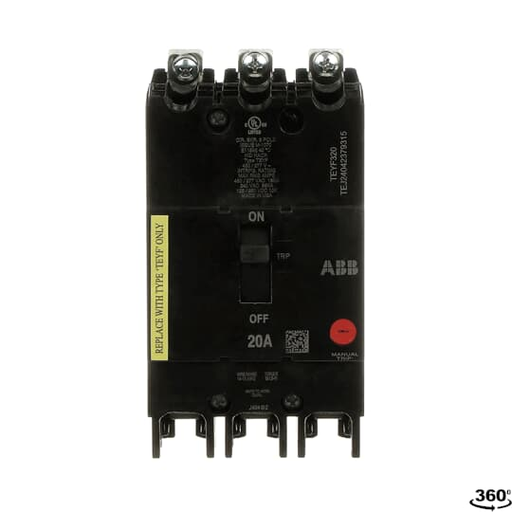

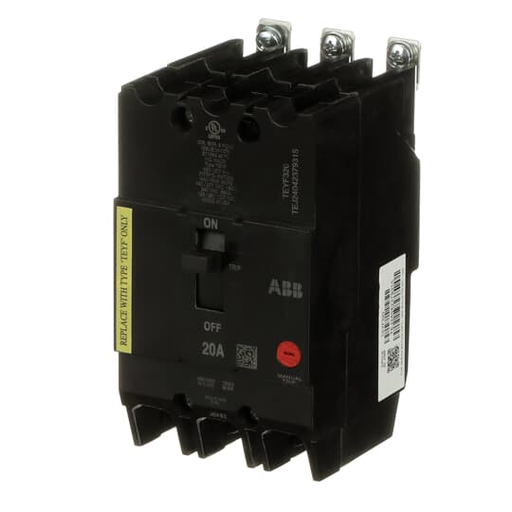

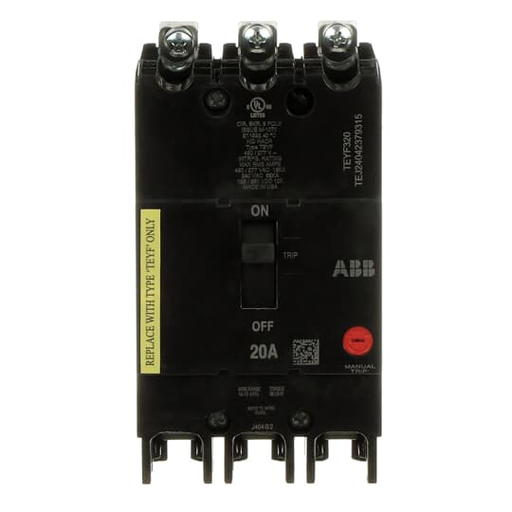

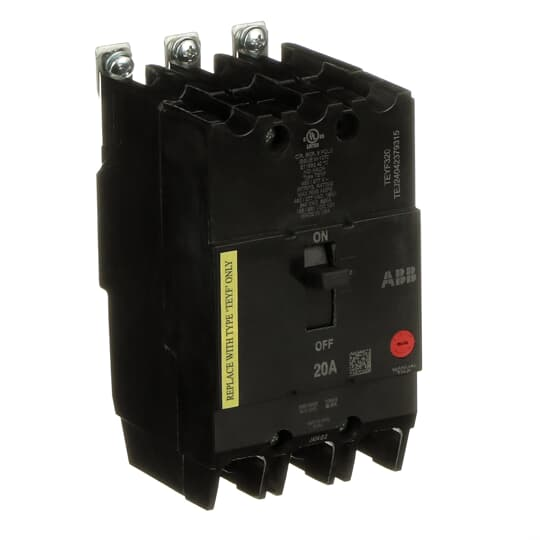

GE TEYF320 TEYF 3 POLE 20 AMP

Manufacturer: GE Distribution Equipment | Catalog # TEYF320 | North Coast Part # 866550

$367.65/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
The TEYF is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEYF suitable for varied applications as a lug-lug breaker. All TEYF circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYF breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEYF 3 POLE 20 AMP

Technical Information

Amperage
20 Amp
Applications
Thermal Magnetic
Frame
TEYF
Load Rating
HACR
Number of Poles
3 Pole
Standard
E11592
Trip Range
Non-Interchangeable
Trip Type
LI
Type
Circuit breakers

Manufacturer Information

Brand
Q-Line,TEY
Sub Brand
TEYF

General Product Info

12-Digit UPC
783164388480
GTiN
00783164388480
Product UPC
78316438848
