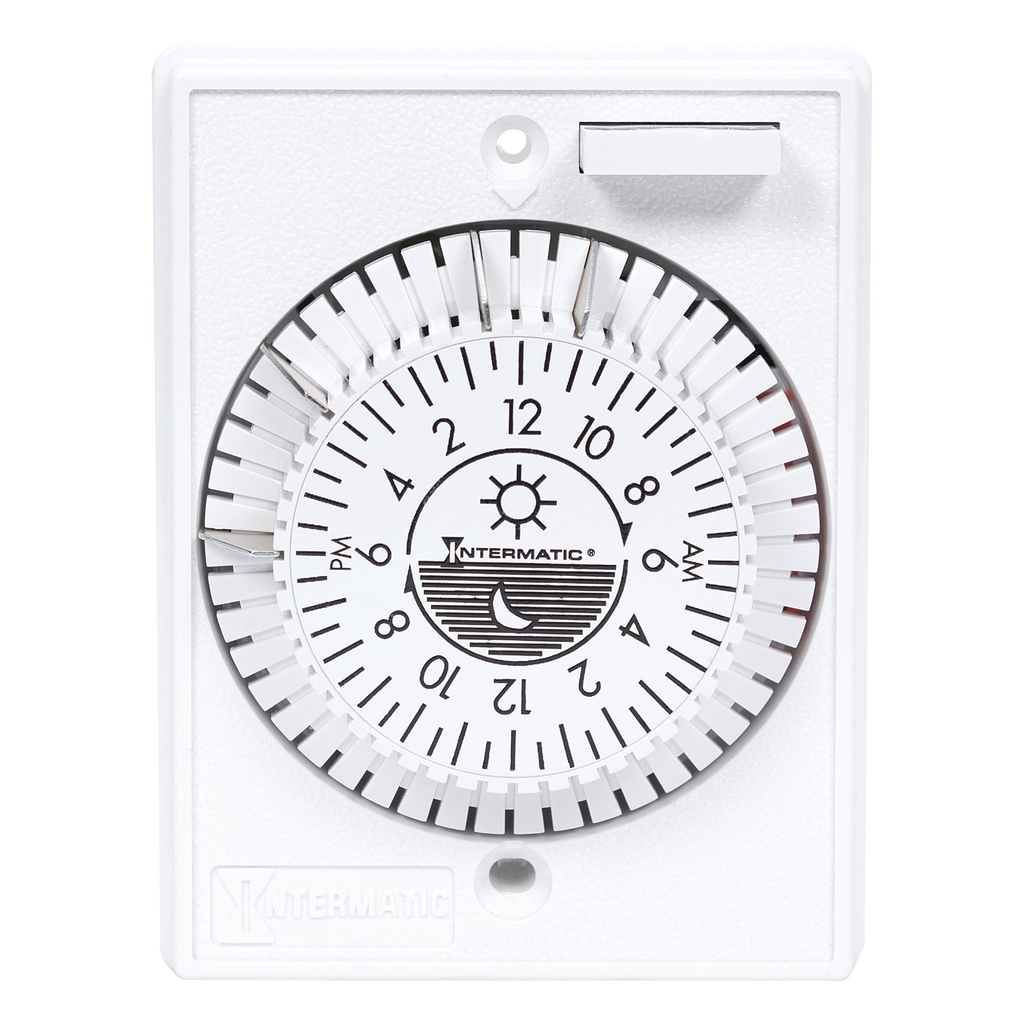

Product image for Intermatic E1020 125 VAC 60 Hz 15 Amp White Heavy Duty Mechanical In-Wall Timer
Image thumbnail 0
Image thumbnail 1
Email

Intermatic E1020 125 VAC 60 Hz 15 Amp White Heavy Duty Mechanical In-Wall Timer

Manufacturer: Intermatic | Catalog # E1020 | North Coast Part # 87455
$89.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
These Heavy-Duty In-Wall Timers are ideal for turning on lights, fans, pumps and other heavy duty loads for energy savings, security and convenience. The timer provides up to 12 ON and 12 OFF operations per day.

Technical Information

Action
SPST
Applications
Air Movement, Indoor Lighting Control, Outdoor Lighting Control and Ventilation Applications
Contact Configuration
1 NO
Contact Rating
15 A
Frequency
60 Hz
Input Voltage
125 V
Max Operating Temperature
25 degrees C
Min Operating Temperature
-20 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Size
4-1/4 HEIGHT X 3-1/4 WIDTH X 1-3/8 DEPTH IN, 10.8 HEIGHT X 9.5 WIDTH X 3.5 DEPTH CM
Standard
CCSAus Certified
Type
Heavy-Duty In-Wall
Voltage
125 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275440203
Color
White
GTiN
00078275440203
Product UPC
07827544020
Weight
0.748 lb

Dimensions

Depth
1-3/8 Inch
Height
4-1/4 Inch
Warranty Length
1 yr
Width
3.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Nickel
Country of Origin
Mexico
Features
  • E1010 includes one ON/OFF permanently attached tripper for single ON/OFF control per 24-hour period
  • E1020 includes two ON/OFF trippers and can accommodate up to 12 ON/OFF trippers
  • Programmable in 30-minute intervals
  • Turns ON/OFF heavy-duty loads for energy savings, security and convenience
  • Mounts to any standard junction box
  • Requires neutral connection
  • NA
