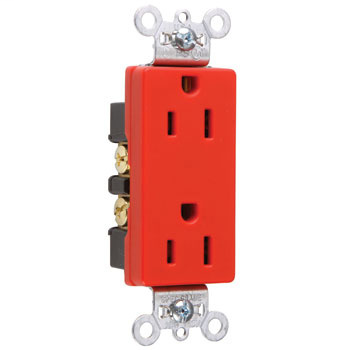

DECO DUP RECEP 15A 125V B+S WIRE RED

Manufacturer: Legrand / Pass & Seymour | Catalog # 26252RED | North Coast Part # 880276
$16.66/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 15amp 125volt Brown

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Dimensions
1.322 in L x 0.833 in W x 3.813 in H
Capacity
Duplex
Conductor Size
14 - 10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3
Size
1.322 L x .833 W x 3.813 H In
Style
Decorator
TC Connection
Back and side wire
Type
Decorator, Heavy Duty
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007784565
Product UPC
78500778456
UNSPSC
39121406

Dimensions

Depth
0.833 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • Terminal compartments isolated from each other for positive conductor containment.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • All devices fit standard #26 opening wall plate.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • For covering patents, see www.legrand.us/patents.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Auto-ground clip assures positive ground.
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Impact-resistant nylon face.
  • Tri-drive terminal and mounting screws.
