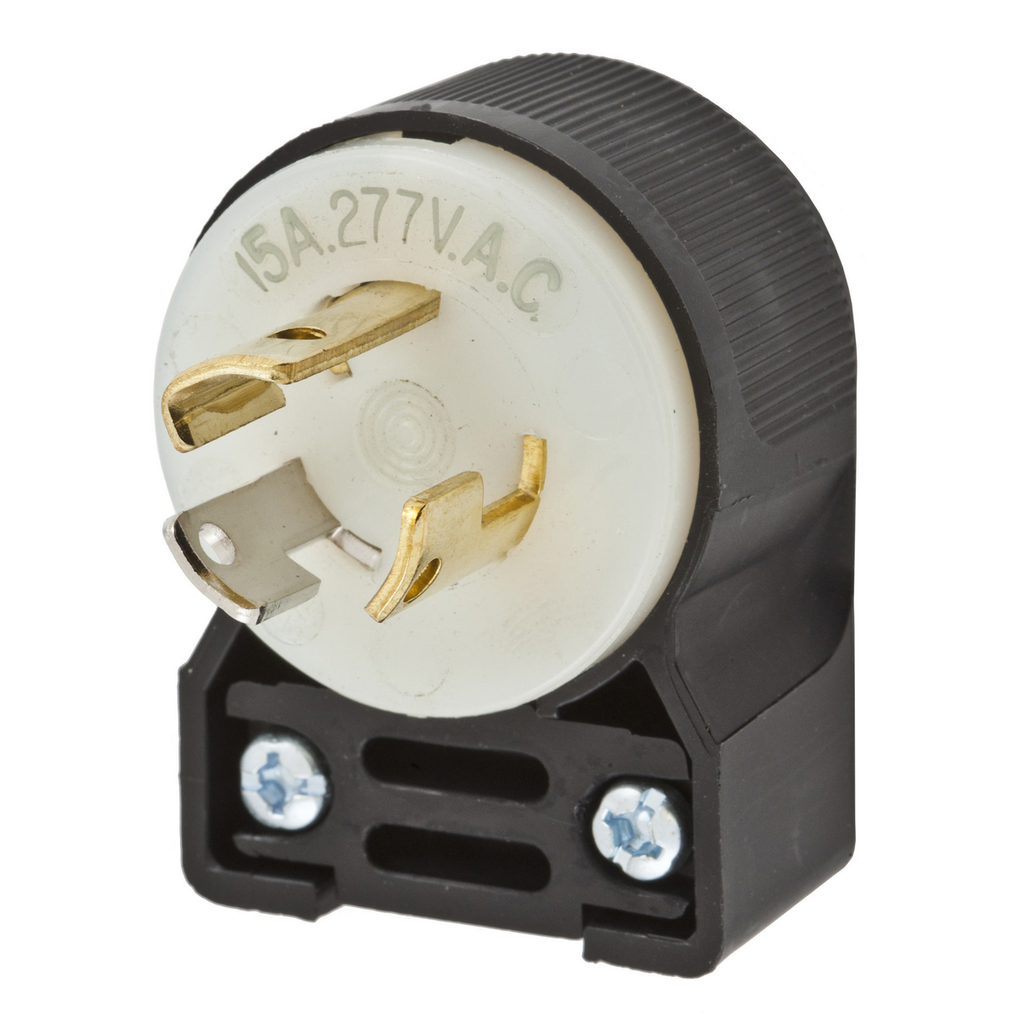

Product image for HWDK HBL4770CA LKG ANG PLUG, 15A 27
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HWDK HBL4770CA LKG ANG PLUG, 15A 27

Manufacturer: Hubbell / Kellems | Catalog # HBL4770CA | North Coast Part # 88159
$51.84/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

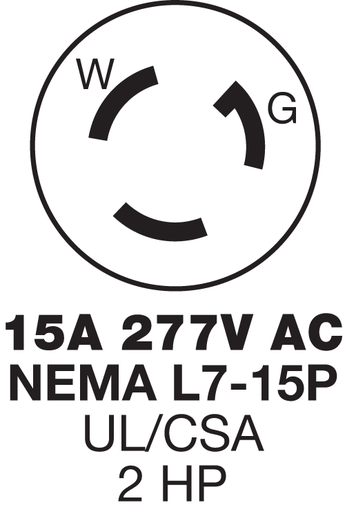

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Black and White Nylon, 8 position angle.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial Grade
Conductor Size
16-8 AWG
Contact Material
Brass
Cord Size
0.325 - 0.655 in
Cord Type
Portable
Current
15 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L7-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C

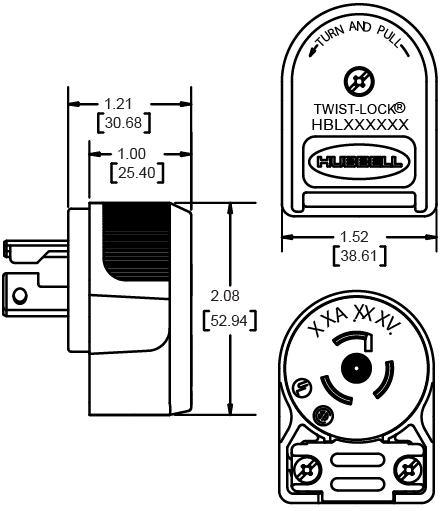

Size
2.08 in x 1.52 in x 1.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Temperature Rating
-40 to 75 degrees C
Type
Industrial Grade, Male
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585171753
Color
Black,White
Environmental Conditions
Flammability Rated Per UL94
GTiN
00783585171753
Product UPC
78358517175
Weight
0.15 lb

Dimensions

Height
1.21 Inch
Length
2.08 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Angled
