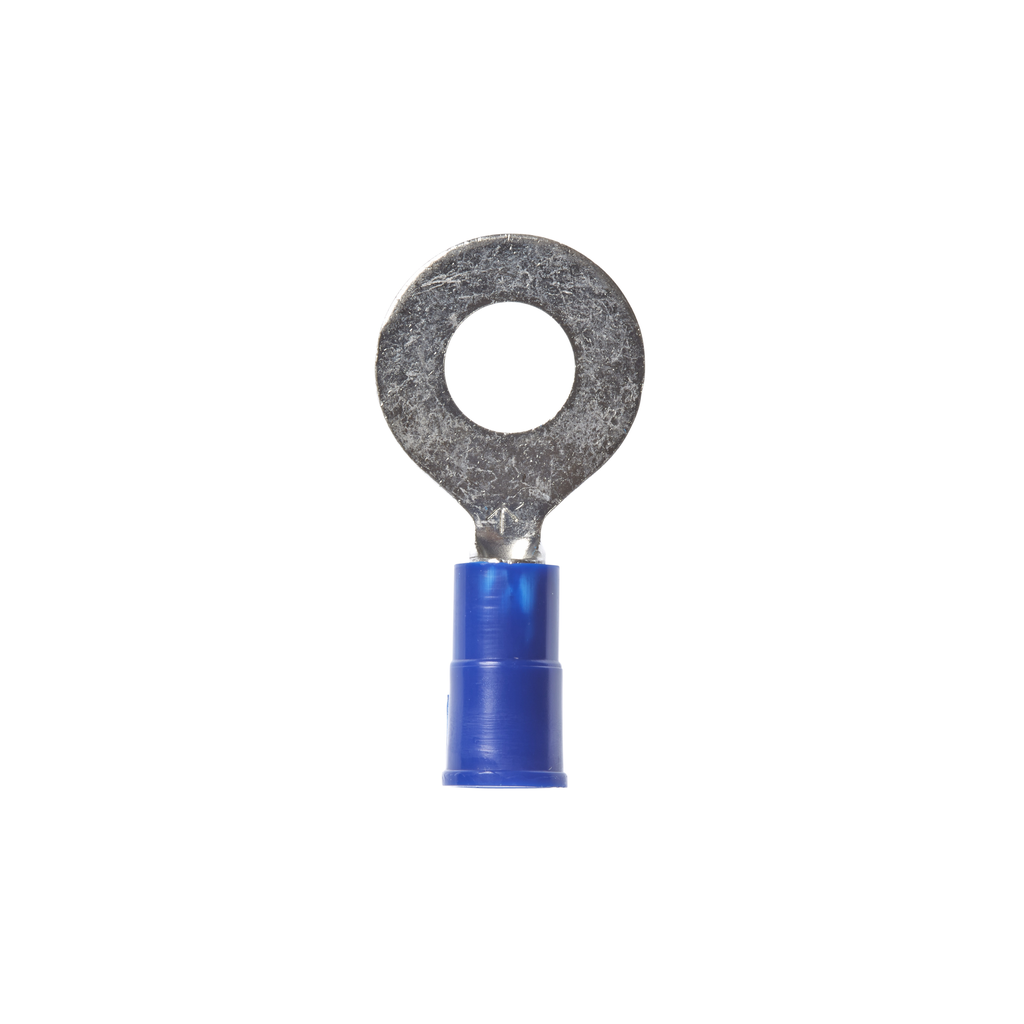

Product image for 3M RV14-516Q Highland 25/Bag Vinyl Insulated Ring
Image thumbnail 0
Image thumbnail 1
Email

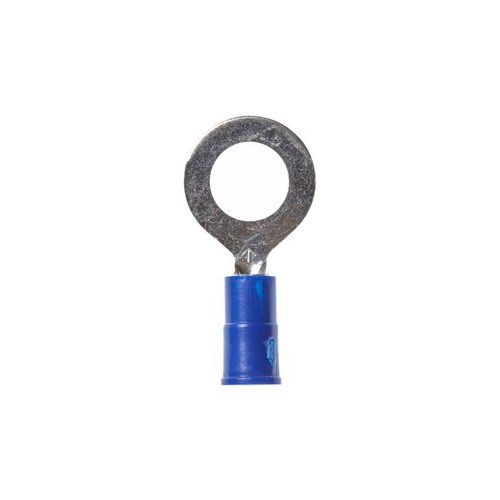

3M RV14-516Q Highland 25/Bag Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7010290999 | North Coast Part # 883166
$15.88/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Standard
CSA,E2186,UL
Stud Size
5/16 in
TC Connection
Ring
Terminal Size
5./16
Terminal Style
Standard
Terminal Type
Ring
Type
Ring Terminal
Wire Size
16-14 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600405
Color
Blue
GTiN
00051128600405
Product UPC
05112860040

Dimensions

Length
1.08 Inch
Overall Length
1.08 in
Thickness
0.03 in
Width
0.47 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
