Hubbell CS8264-C 50A 250V Twist-Lock Black Nylon Connector Body

Manufacturer: Hubbell / Kellems | Catalog # CS8264C | North Coast Part # 88684
$306.93/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Pick Up

at Auburn Opens Friday 5:00am PT
12 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 250V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw
Current
50 Amp
Material
Composite
Number of Conductors
3
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Plate
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, Straight
Voltage
250 Volt
Wire Count
3
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585828466
Color
Black and White
Environmental Conditions
Indoor Only
GTiN
00783585828466
Product UPC
78358582846
Weight
0.95 lb

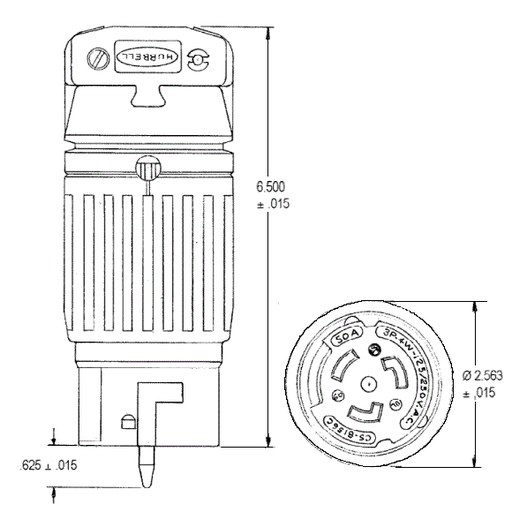

Dimensions

Height
2-1/2 Inch
Length
6-1/2 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
