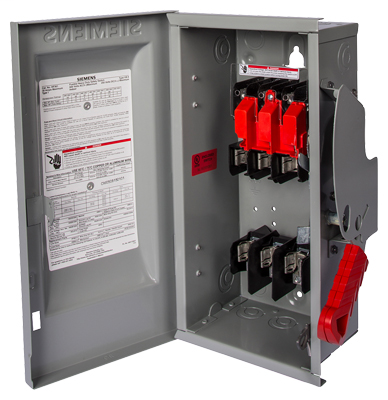

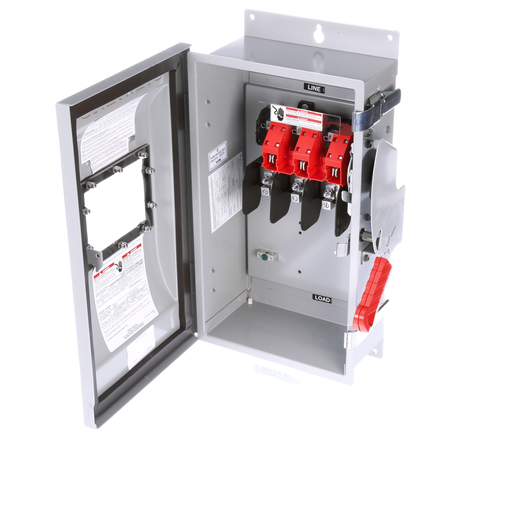

Siemens HFC361JW CSA 30A 3P 3W 6

Manufacturer: Siemens | Catalog # HFC361JW | North Coast Part # 887273
$544.98/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
30 Amp
Applications
For Industrial use
Enclosure
NEMA12
Frequency
60 Hz
Fuse Type
A2/A3
Insulated?
Yes
Interrupt Rating
10 kAIC
Load Rating
3 W
Material
Stainless Steel
Mounting Type
2 or 3 Point Mounting Holes
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Fused, Toggle, Single Throw
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643221703
GTiN
00783643221703
Housing Material
304 Stainless Steel
Product UPC
78364322170
Weight
16.600 lb

Dimensions

Height
19 Inch
Length
11 Inch
Width
8.000 in

Certifications and Compliance

Country of Origin
Mexico
