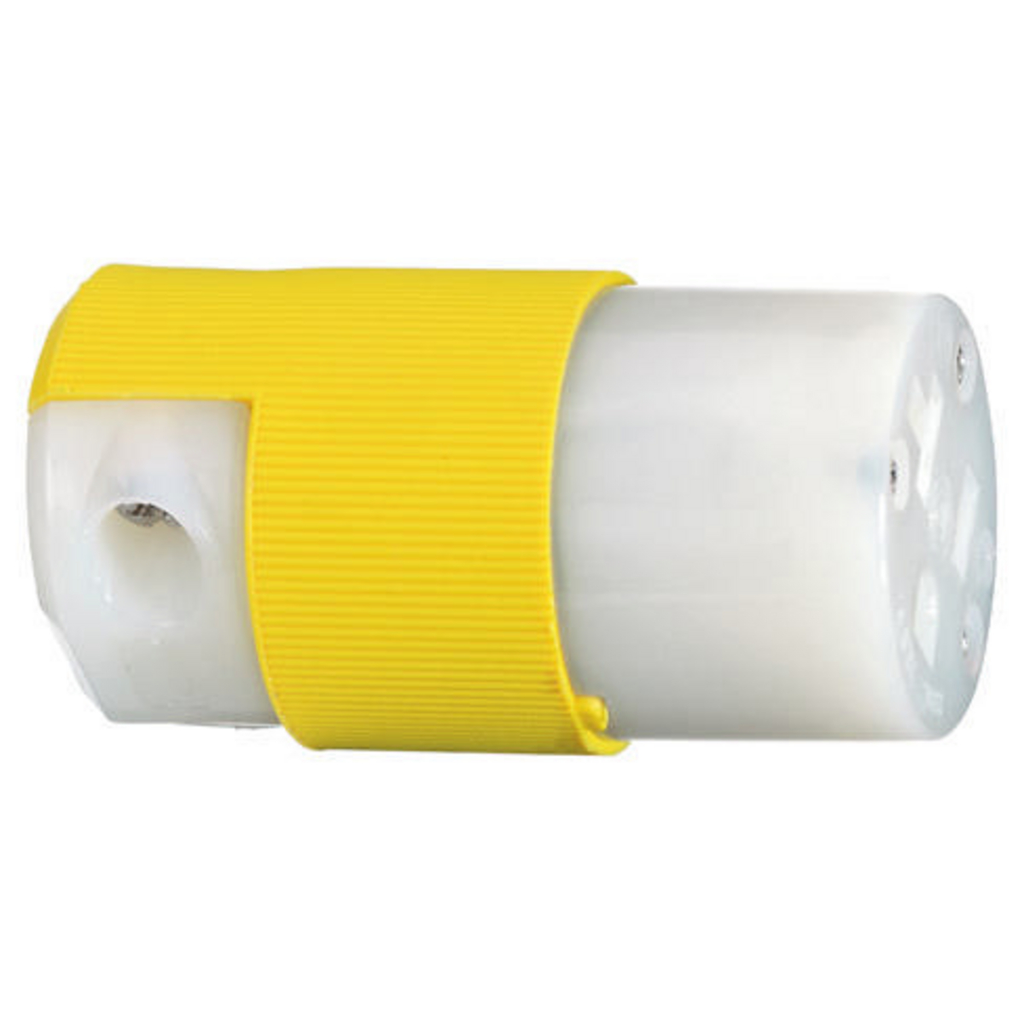

Product image for Hubbell HBL53CM69C 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Yellow Nylon Straight Blade Device Connector Body
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL53CM69C 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Yellow Nylon Straight Blade Device Connector Body

Manufacturer: Hubbell / Kellems | Catalog # HBL53CM69C | North Coast Part # 89627
$88.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 20A 125V, 5-20R, Yellow, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial, Marine
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
20 Amp
Grounding
Grounding
Horsepower
1 hp
Material
Nylon
Mounting Type
Cord
NEMA
5-20R
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Corrosion Resistant
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Standard, Corrosion-Resistant
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585161808
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585161808
Product Series
Insulgrip
Product UPC
78358516180
Weight
0.25 lb

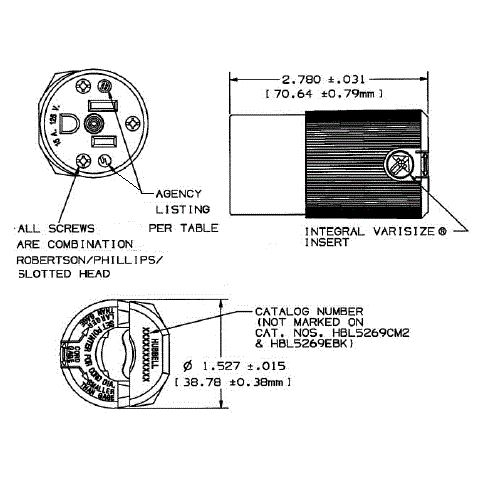

Dimensions

Height
2.78 Inch
Length
2.78 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Roomy wiring chamber provides ample space for wiring
  • Corrosion Resistant
