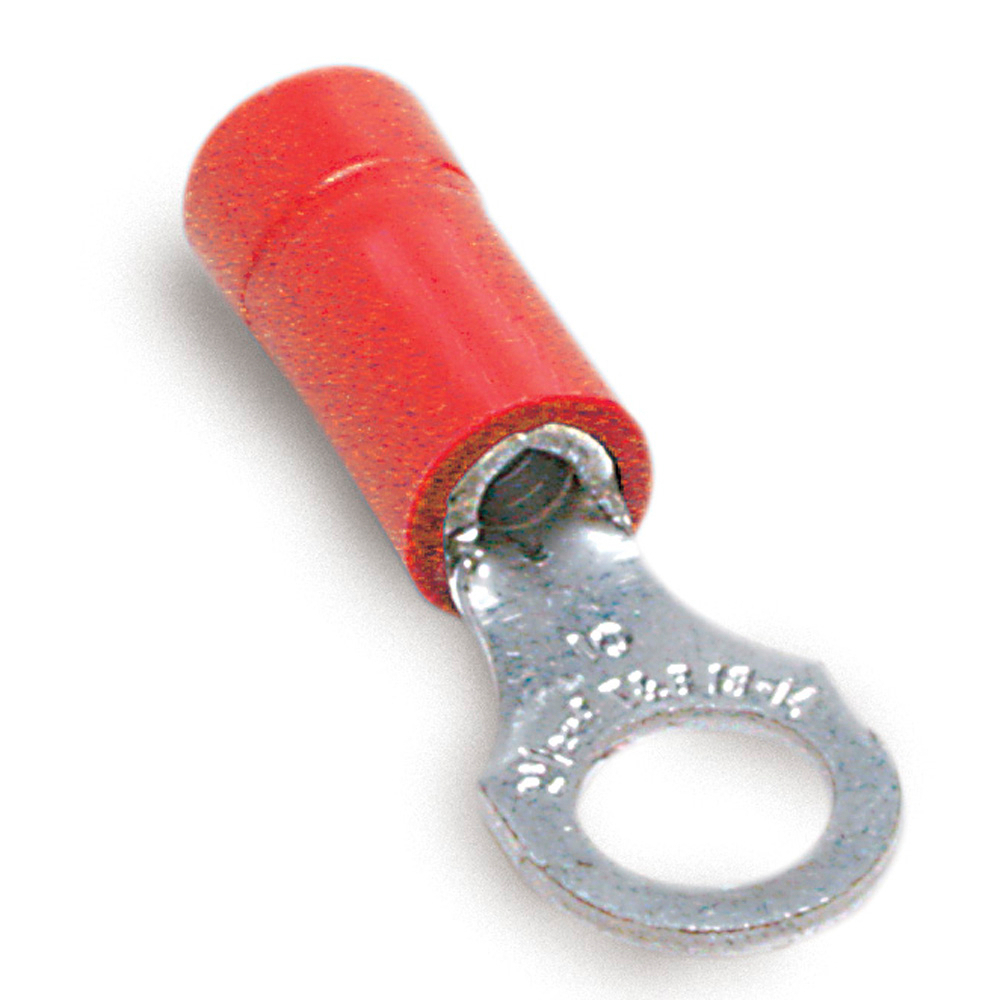

Thomas & Betts 18RA-10 Vinyl-Insulated Ring Terminal - #22-16, #10bolt

Manufacturer: Thomas & Betts | Catalog # 18RA-10 | North Coast Part # 90070
$194.51/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
300 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
300 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

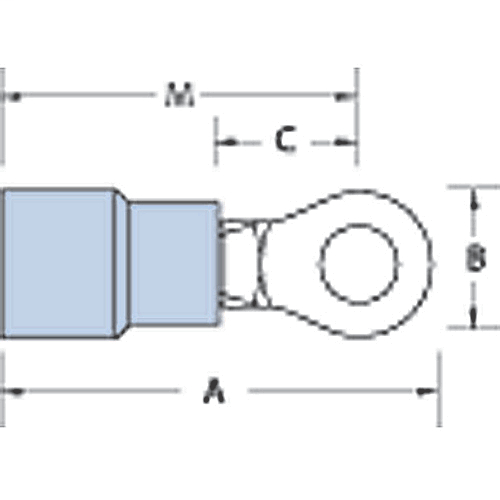

Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800929
Color
Red
Finish
Electro Tin Plated
GTiN
05414363138440
Product UPC
78621080092

Dimensions

Height
8.9 Inch
Thickness
.03 in
Width
9-1/2 in
Certifications
  • CSA
  • UL
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
