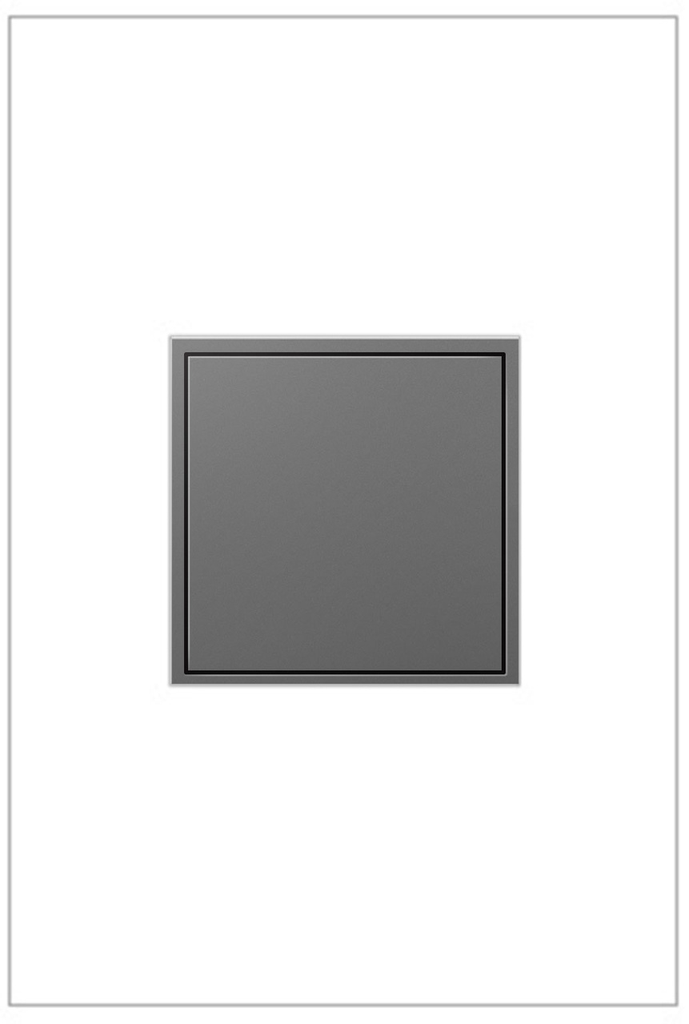

Product image for Pass & Seymour ARPTR151GM2 1-Gang 15A 125V Triplex Popout Kit - Magnesium
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour ARPTR151GM2 1-Gang 15A 125V Triplex Popout Kit - Magnesium

Manufacturer: Legrand / Pass & Seymour | Catalog # ARPTR151GM2 | North Coast Part # 903921
$82.17/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual CAD Drawing #1
The cleverest way to add power and style, the Pop-Out Outlet extends to offer 3-plug access, then uniquely disappears back into the wall with a simple push when not in use. Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately.*For use in stand-alone, single gang installations only. To install a second Pop-Out Outlet or another adorne device within the same wall box, please see our 2-Gang Pop-Out Outlet kit.

Technical Information

Amperage
15 Amp
Applications
For Residential Outlet
Conductor Size
14-10 AWG
Connection Type
Back and Side
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
NEMA
15A
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Indoor,Pop-Out,Residential,Tamper-Resistant
Standard
CSA C22.2 No. 85,UL E23018,cULus
TC Connection
Back and side wire
Type
1-Gang
Voltage
125 Volt
Wire Size
14 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Adorne

General Product Info

12-Digit UPC
786776178616
Color
Magnesium
Finish
Gloss
GTiN
00786776178616
Product UPC
78677617861

Dimensions

Depth
2.6 Inch
Height
4.88 Inch
Warranty Length
Limited Lifetime
Width
2.99 in

Certifications and Compliance

Country of Origin
China
Features
  • For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
  • Perfect anywhere you'd like to hide outlets when not in use, for added style and safety.
  • Provides additional power with 3-plug access when extended from wall.
  • Disappears back into the wall with a simple push when not needed.
  • Installs easily in as little as 15 minutes.
  • Comes with a special frame for mounting and requires a deep electrical outlet (22.5 cubic inches). No new wires required for typical installation.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • cULus Listed
