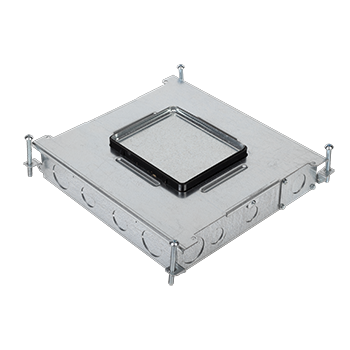

Wiremold RFB6 14-5/8 x 14 x 3-1/4 Inch 6-Gang Steel Rectangular Recessed Floor Box

Manufacturer: Wiremold | Catalog # RFB6 | North Coast Part # 909453

$253.86/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch

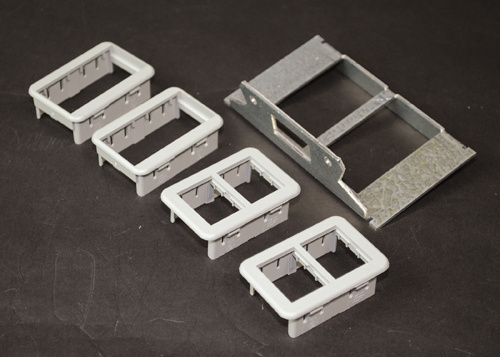

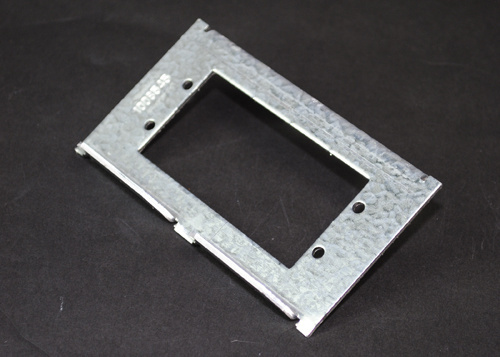

Resource RFB® Series six Gang Floor Box is a versatile activation solution that provides power and/or communication services to open space areas or directly to the workstation. For use in either wood or above grade concrete floors, it is fully adjustable with a tunnel compartment. Supplied with two (2) duplex mounting plates, two (2) communication mounting plates (RFB62A), and (2) blank mounting plates. Other device plates sold separately. RFB Series Floor Boxes are now available with the new FloorPort Activation Covers. This new cover series incorporates TopGuard protection to prevent water, dirt, and debris from entering the power and communication devices. The FloorPort Activation Covers are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors. The RFB Series has many unique applications, some of which include schools, financial institutions, commercial office buildings, and residences.

Technical Information

Applications
For Open Space Concrete Floors
Cable Entry
(4) 3/4 in, (10) 1 in, (12) 1-1/4 in Knockout
Material
Steel
Mounting Type
Screw-On/Concrete
Number of Gangs
6 Gang
Number of Outlets
0.0
Type
Floor Box

Manufacturer Information

Family Brand Name
Wiremold
Sub Brand
Wiremold

General Product Info

Color
Silver
Construction
Assembled
GTiN
00786564059899
Product Series
Resource RFB
Product UPC
78656405989
Weight
13.59 lb

Dimensions

Depth
14-1/2 Inch
Height
3-1/4 Inch
Width
14.63 in

Certifications and Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
