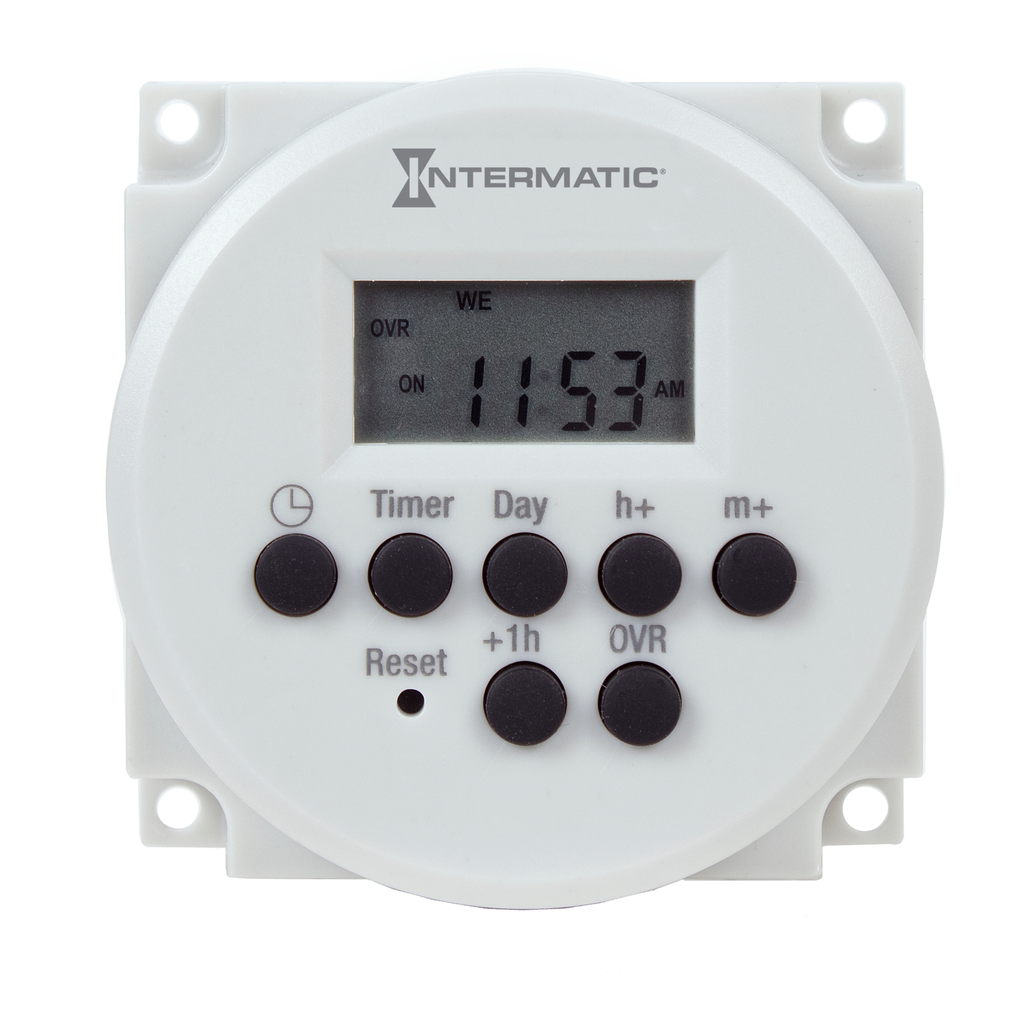

Product image for Intermatic FM1D14-AV-U DGTL TMR,120-277V,14 ST PNT UN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Intermatic FM1D14-AV-U DGTL TMR,120-277V,14 ST PNT UN

Manufacturer: Intermatic | Catalog # FM1D14-AV-U | North Coast Part # 910819
$346.64/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Technical Information

Action
SPDT
Applications
Aeration,Air Movement & Ventilation,Generator Exercising,Refrigeration Merchandiser,Septic Treatment
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
15 AMP @ 277 VAC (General Use NO), 8 AMP @ 277 VAC (Ballast NO), 4.9 AMP @ 120 VAC (Electronic Ballast NO), 15 AMP @ 277 VAC (General Use NC), 12 AMP @ 24 VDC (Resistive NC), 8 AMP @ 120 VAC (Ballast NC)
Frequency
50/60 Hz
Input Voltage
120-277 V
Max Operating Temperature
135 degrees F
Min Operating Temperature
-15 degrees C
Mounting Type
Panel Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
1.4 W
Size
2.36 HEIGHT X 2.36 WIDTH X 1.26 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Standard
CULus Recognized E10694,California TITLE 24 Compliant,HVACR
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Type
One Circuit Electronic
Voltage
120-277 VAC
Wattage
1000 Watt

Manufacturer Information

Brand
NA
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275142770
Color
White
GTiN
00078275142770
Product UPC
07827514277

Dimensions

Depth
1.26 Inch
Height
2.36 Inch
Warranty Length
1 yr
Width
2.36 in

Certifications and Compliance

Country of Origin
China
Features
  • 24-Hour or 7-day applications
  • 14 Setpoint programs
  • Easy to program
  • Manual override with status indication
  • Self-recharging battery with backup protection up to 2500-hours
  • LCD display
  • 5 Preset adjustable block programs
  • A & E models come with clear dust cover
  • NA
