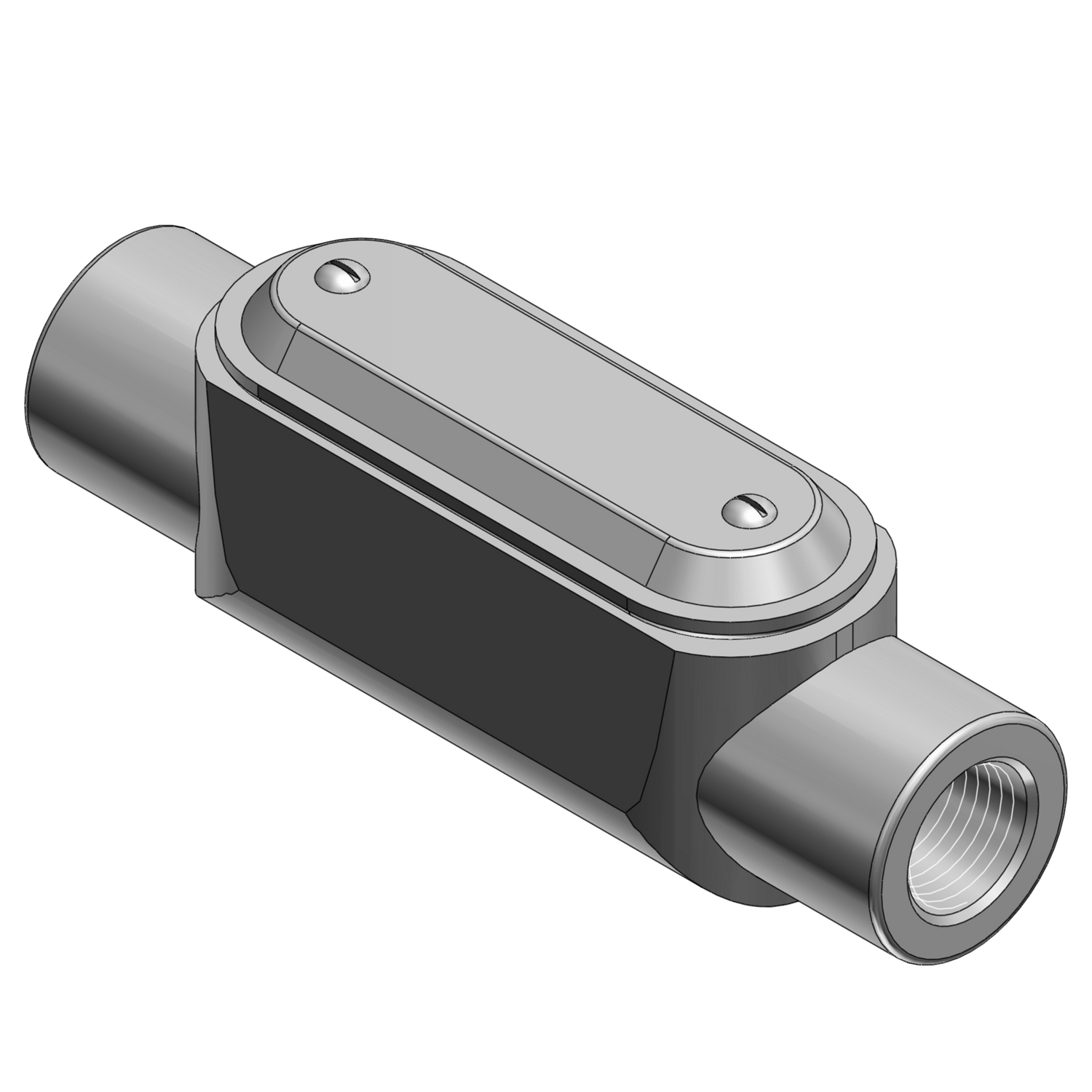

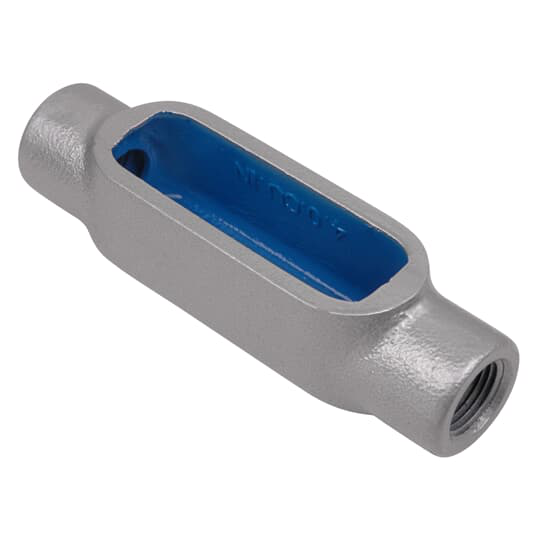

Product image for Ocal C47-G 1-1/4" PVC-Coated Ocal-Blue® C-Style Conduit Body, Form-7 - Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Ocal C47-G 1-1/4" PVC-Coated Ocal-Blue® C-Style Conduit Body, Form-7 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # C47-G | North Coast Part # 91415
$554.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, C Shape, Form 7, Size 1-1/4 Inch/35 Metric, Iron, Dark Gray

Technical Information

Applications
Act As Pull Outlets for Conductors that are Stiff, Due to Large Size or Type of Insulation
Hub Size
1-1/4
Material
Iron
Size
1 1/4 in
Standard
UL E2969
Trade Size
1-1/4 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal-Blue®

General Product Info

12-Digit UPC
704508358686
Color
Gray
Finish
PVC-Coated/Dark Gray
GTiN
00704508358686
Product UPC
70450835868

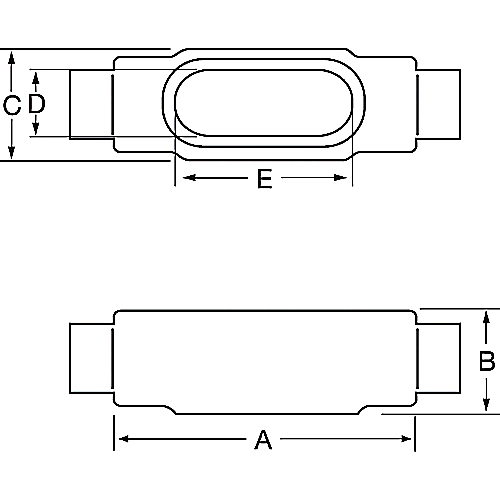

Dimensions

Height
2.3 Inch
Length
7.3 Inch
Width
2.2 in
Application
  • Provide taps for branch conduit runs
  • Make 90° bends in conduit runs
  • Connect conduit sections
  • Provide openings for making splices and taps in conductors
  • Act as pull outlets for conductors being installed
  • Provide for access to conductors for maintenance and future system changes
Certifications
  • CSA
  • UL
Features
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
Notes
  • Dimensional values are of uncoated conduit bodies.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
