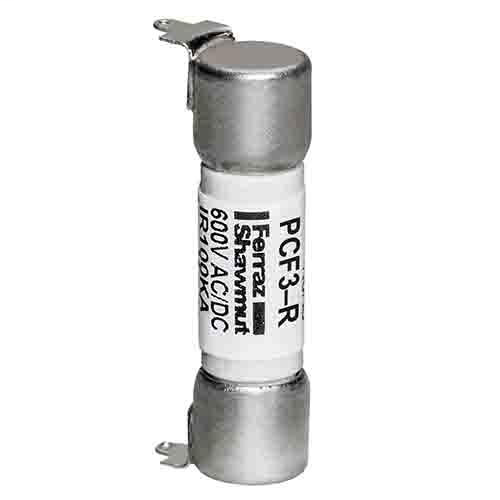

Product image for Mersen PCF3-R 90572-FUSEPC MOUNT
Image thumbnail 0
Image thumbnail 1
Email

Mersen PCF3-R 90572-FUSEPC MOUNT

Manufacturer: Mersen | Catalog # PCF3-R | North Coast Part # 920780
$72.37/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
PCF series of fast-acting direct-mountable fuses address the need for electrical protection at the PC board. These fuses help PCB users/manufacturers reduce parts by eliminating clips and/or fuseholders and allowing automated assembly. PCF fuses can be used for the protection of main frame power boards, small circuit breakers with low-interrupting capabilities and other critical components. PCF fuses bring greatly increased ampere, voltage and interrupting ratings to the board itself and are UL Component Recognized.

Technical Information

Amperage
3 Amp
Applications
Protection of main frame power boards, circuit breakers, or other PCB components
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
100 kAIC
Mounting Type
PC Mount
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Slot Mount (Rectangular Holes)
Terminal Material
Tin-Plated Copper
Terminal Type
Slot Mount
Type
Supplemental Protection
Voltage
600 VAC

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001905729
Class
M
GTiN
30782001905720
Product UPC
78200190572
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1.53 Inch
Features
  • Fast-acting
  • PC board mount
  • Three mounting styles
Applications
  • Protection of main frame power boards, circuit breakers, components
Approvals & Standards
  • UL Recognized Components File E60314
