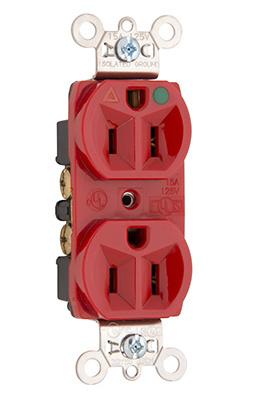

Product image for Pass & Seymour IG8200-RED Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 15A 125V - Red
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour IG8200-RED Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 15A 125V - Red

Manufacturer: Legrand / Pass & Seymour | Catalog # IG8200RED | North Coast Part # 921226
$49.10/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 15amp 125volt, Ivory.

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Federal Specification,Hospital
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .922 W x 3.281 H In
Standard
NEC®
Style
Duplex
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy Duty
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007820461
Color
Amber,Green,Red,White
GTiN
00785007820461
Product UPC
78500782046
UNSPSC
39121406

Dimensions

Depth
0.922 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
