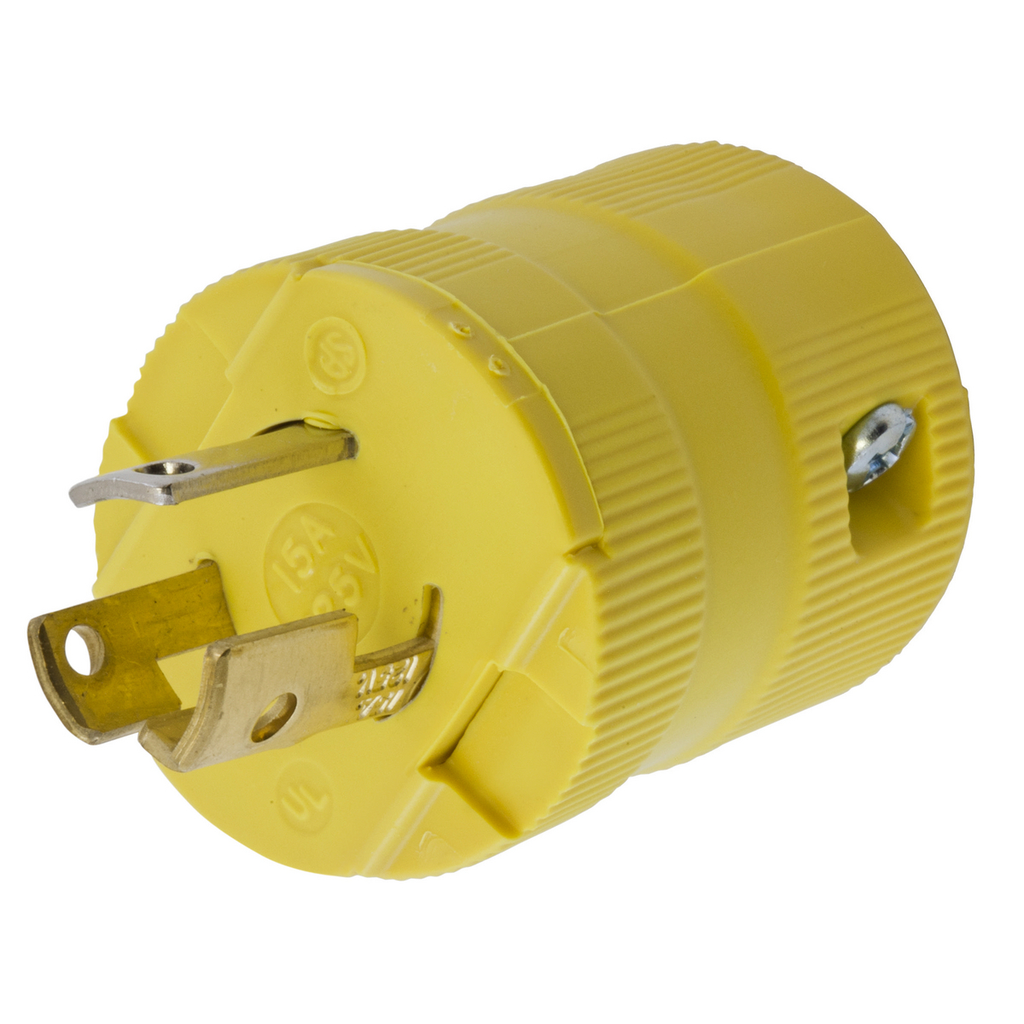

Product image for Hubbell HBL4773VY 15 Amp 277 VAC NEMA L7-15P Yellow Nylon Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL4773VY 15 Amp 277 VAC NEMA L7-15P Yellow Nylon Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL4773VY | North Coast Part # 92631
$29.37/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
15 Amp
Applications
Power Connection
Conductor Size
14-12 AWG
Cord Type
Portable
Current
15 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA

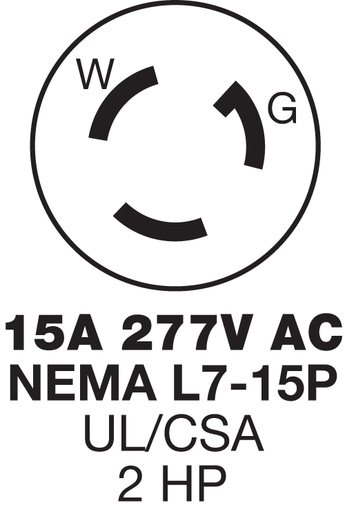

L7-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.50 in x 1.50 in x 1.87 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585236933
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585236933
Product UPC
78358523693
Weight
0.15 lb

Dimensions

Height
1.87 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
