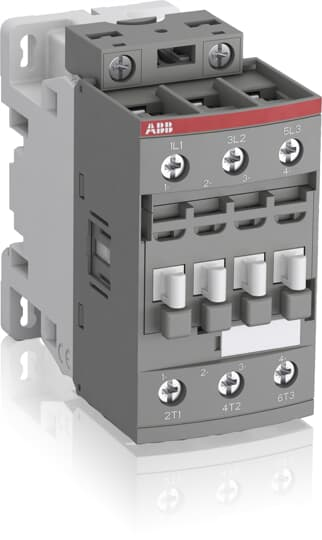

Thomas & Betts AF26-30-00-13 100 - 250 Volt 50/60 Hz DC Contactor

Manufacturer: ABB Inc. | Catalog # AF26-30-00-13 | North Coast Part # 927316
$207.28/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
3 pole, 45 amp, non-reversing across the line contactor with 100-250V AC/DC coil and no auxiliary contacts

Technical Information

Amperage
45 Amp
Applications
For Controlling 3-Phase Motors, Non-Inductive or Slightly Inductive Loads
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
3 NO Main
Mounting Type
Front and Side
Number of Poles
3 Pole
Power Rating
6.5 kW at 220/230/240 V, 11 kW at 380/400/415 V, 15 kW at 440/500/690 V
Size
45x86x86mm
Standard
60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-25 to 60 degrees C
Terminal Type
Screw Terminals
Type
Non-Reversing
Voltage
690 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325538725
Environmental Conditions
-60 to 80 C Storage Temperature
GTiN
00804325538725
Product UPC
3471523110939
