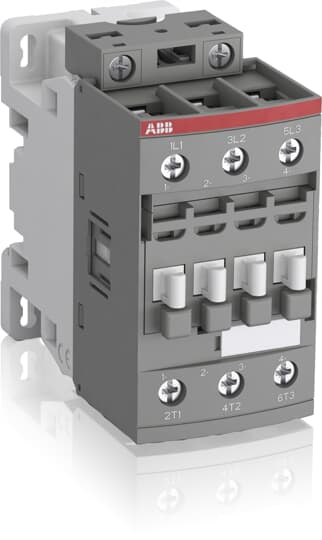

ABB AF30-30-00-13 100 - 250 Volt 50/60 Hz DC Contactor

Manufacturer: ABB Inc. | Catalog # AF30-30-00-13 | North Coast Part # 927320
$262.58/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
3 poles 50 amperes non-reversing across the line contactor with 100-250V AC/DC coil and no auxiliary contacts. 86 millimiters depth x 86 millimiters height x 45 millimiters width.

Technical Information

Amperage
37/42/50 Amp at 690 V (1-Phase), 33 Amp at 220/230/240 V, 32 Amp at 380/400/440 V, 28 Amp at 500 V, 21 Amp at 690 V (3-Phase)
Applications
Mainly used for Controlling 3 Phase Motors, Non-Inductive or Slightly Inductive Loads
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
3 NO Main
Number of Poles
3 Pole
Power Rating
9 kW at 220/230/240 V, 15 kW at 380/400/415 V, 18.5 kW at 440/500/690 V
Size
45x86x86mm
Standard
60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-40 to 70 degrees C
Terminal Type
Screw Terminals
Type
Non-Reversing
Voltage
690 VAC

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325538800
Environmental Conditions
-60 to 80 C Storage
GTiN
00804325538800
Product UPC
3471523111233
