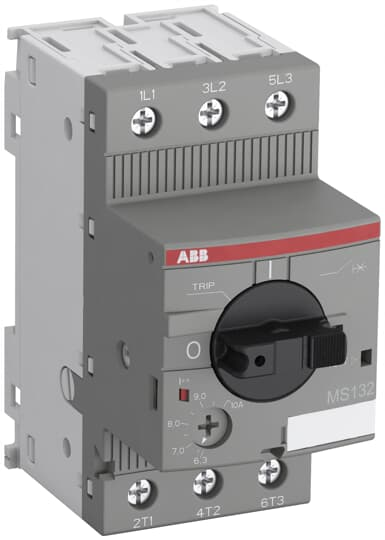

Product image for ABB MS132-10 3P MMP 6.3-10.0A RANGE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB MS132-10 3P MMP 6.3-10.0A RANGE

Manufacturer: ABB Inc. | Catalog # MS132-10 | North Coast Part # 927359
$355.21/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
3 pole, 0.63 to 1.0 amp, UL rated, MS132 manual motor protector

Technical Information

Amperage
9.8 Amp
Applications
For Use as a Motor Disconnect In Single Motor Applications, Group Motor Installations, Tap Conductor Protection and Type E and F Combination Motor Controllers
Conductor Size
1/2 x 1 - 4 mm (Solid), 1/2 x 1 - 4 mm (Stranded), 1/2 x 0.75 - 2.5 mm (Flexible With Ferrule), 1/2 x 0.75 - 2.5 mm (Flexible With Ferrule Insulated), 1/2 x 0.75 - 2.5 mm (Flexible Without Ferrule)
Control Voltage
690 VAC, 250 VDC
Mounting Type
DIN Rail
Number of Poles
3 Pole
Standard
EN 60947-1IEC,EN 60947-2IEC,EN 60947-4-1UL 60947-1UL 60947-4-1,IEC
Temperature Rating
-25 to 60 degrees C
Terminal Type
Screw Terminals
Trip Class
Class 10
Type
Type MS132

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325530538
Box Quantity
1
Environmental Conditions
-50 to 80 C Storage Temperature
GTiN
04013614400056
Product UPC
4013614400100
