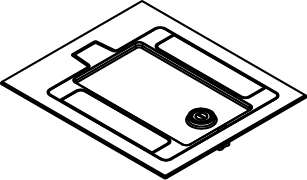

Product image for Wiremold RFB119CTCAL 10-11/16 x 12-1/2" Aluminum Floor Box Carpet Cover Assembly
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Wiremold RFB119CTCAL 10-11/16 x 12-1/2" Aluminum Floor Box Carpet Cover Assembly

Manufacturer: Wiremold | Catalog # RFB119CTCAL | North Coast Part # 931315
$940.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Brochure Installation / Instruction Manual CAD Drawing #1 Specification Sheet
Cast aluminum cover assembly available in brushed aluminum (AL), painted black (BK), and gray (GY). Provided with carpet cut-out area. Maximum load capacity 1,500 lbs. UL Listed to U.S. and Canadian safety standards to meet UL requirements under UL514A for scrub water exclusion. NOTE: Not for use on bare concrete floor applications.

Technical Information

Applications
Non-Locking Blade Plugs, 1-3/8 in Device Opening
Component Type
Covers & Flanges
Material
Aluminum
Standard
CSA C22.2 No. 85,UL E23018,cULus
Type
Resource RFB Series

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564010333
Construction
Assembled
GTiN
00786564010333
Product Series
Resource RFB
Product UPC
78656401033

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Features
  • Cast aluminum cover assembly available in brushed aluminum (AL), painted black (BK), and gray (GY).
  • Provided with carpet cut-out area
  • Maximum load capacity 1,500 lbs
  • UL Listed to U.S. and Canadian safety standards to meet UL requirements under UL514A for scrub water exclusion.
  • NOTE: Not for use on bare concrete floor applications
Certifications
  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
