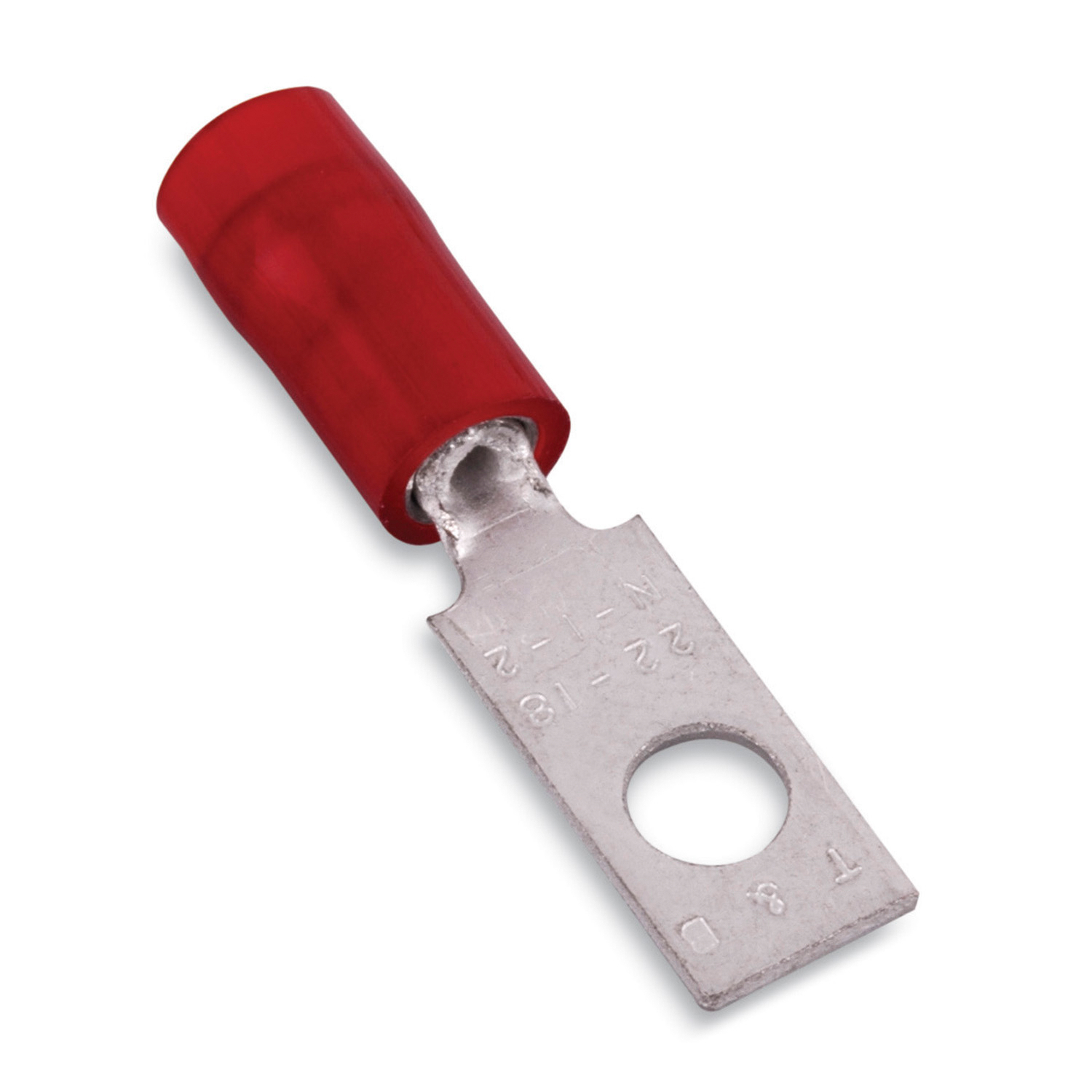

ABB RA483 INS NYL RECT RING TERM, 2

Manufacturer: Thomas & Betts | Catalog # RA483 | North Coast Part # 931336
$270.96/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

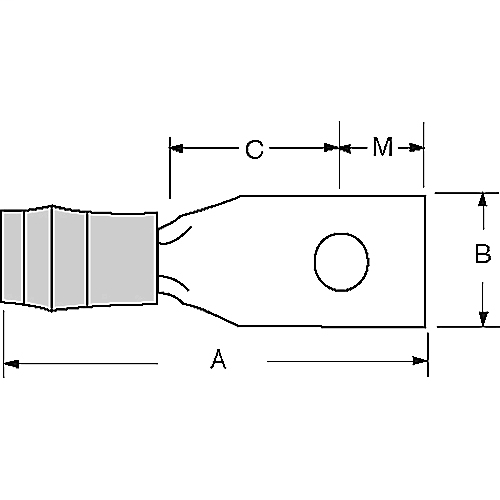

Nylon Insulated Rectangular Ring Terminal, Length .859 Inches, Width .277 Inches, Bolt Hole #5, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Rectangular
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210817132
Color
Red
Finish
Electro Tin Plated
GTiN
00786210817132
Product UPC
78621081713
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • 22-18 ga. = 1-2 Navy
  • RA, RB, RC483 for use with BU-Ships terminal board types 8TB.
