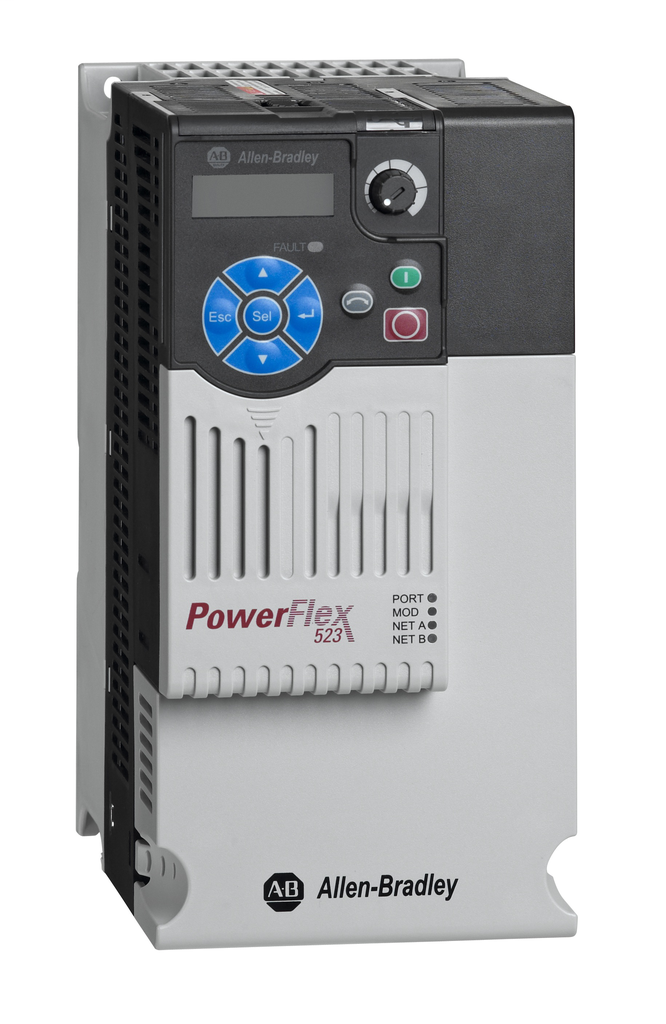

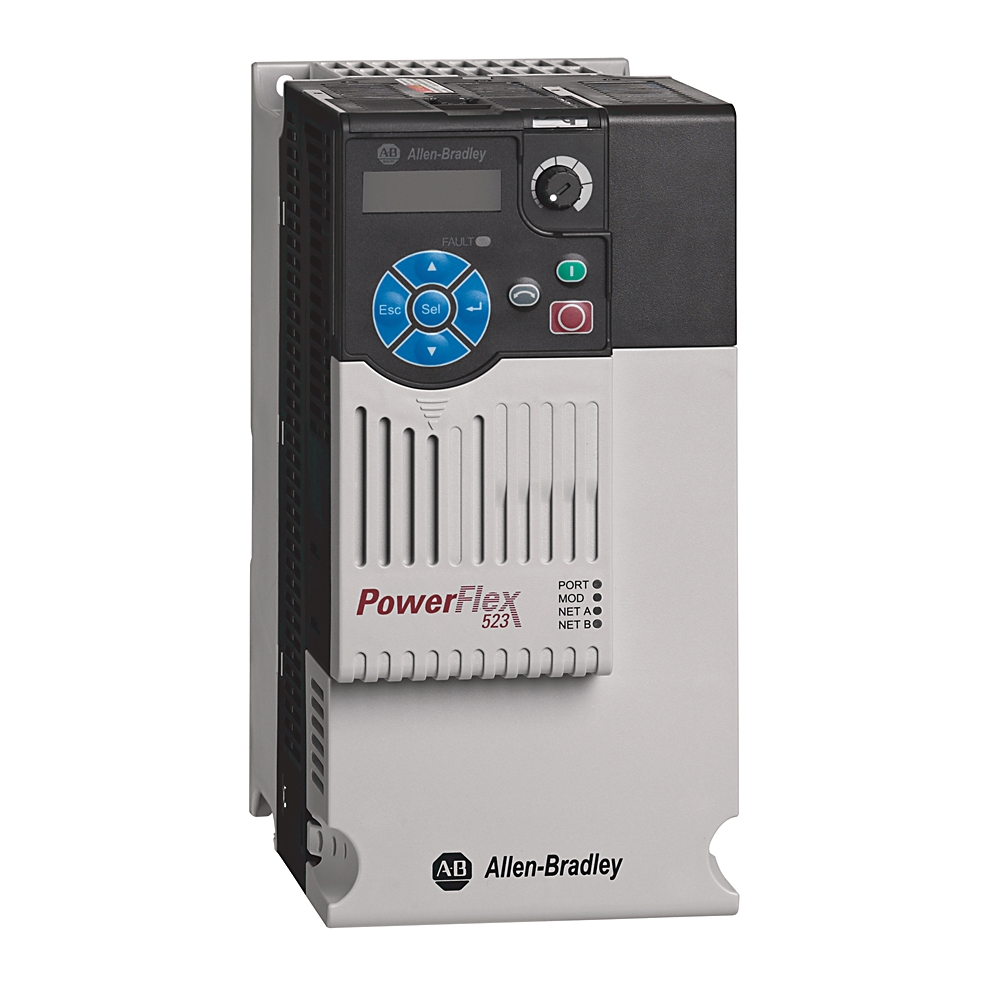

Product image for Allen-Bradley 25A-D013N104 480 VAC 13 Amp 3-Phase AC Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Allen-Bradley 25A-D013N104 480 VAC 13 Amp 3-Phase AC Drive

Manufacturer: Allen-Bradley / Rockwell | Catalog # 25A-D013N104 | North Coast Part # 931354
$1,789.40/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Auburn Closes 3:00pm PT
2 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
PowerFlex 523 5.5kW (7.5Hp) AC Drive

Technical Information

Amperage
13 Amp
Applications
Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, Industrial Applications, DeviceNet Safety
Enclosure Rating
1, IP20
Enclosure Type
NEMA 1, IP20
IP Rating
IP20
Output
1 Analog
Output Current
13 A
Power Rating
5.5 kW
Size
C
Standard
C-TICK,CE,CUL,GOST,KC,UL
Type
AC Drive
Voltage
480 Volt
Wattage
5.5 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 523

General Product Info

12-Digit UPC
885630702537
Environmental Conditions
-20 to 50 C
GTiN
00885630702537
Product UPC
88563070253

Dimensions

Depth
184 Inch
Width
109
Features
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Supports low-cost networking through an integrated RS485/DSI port
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
