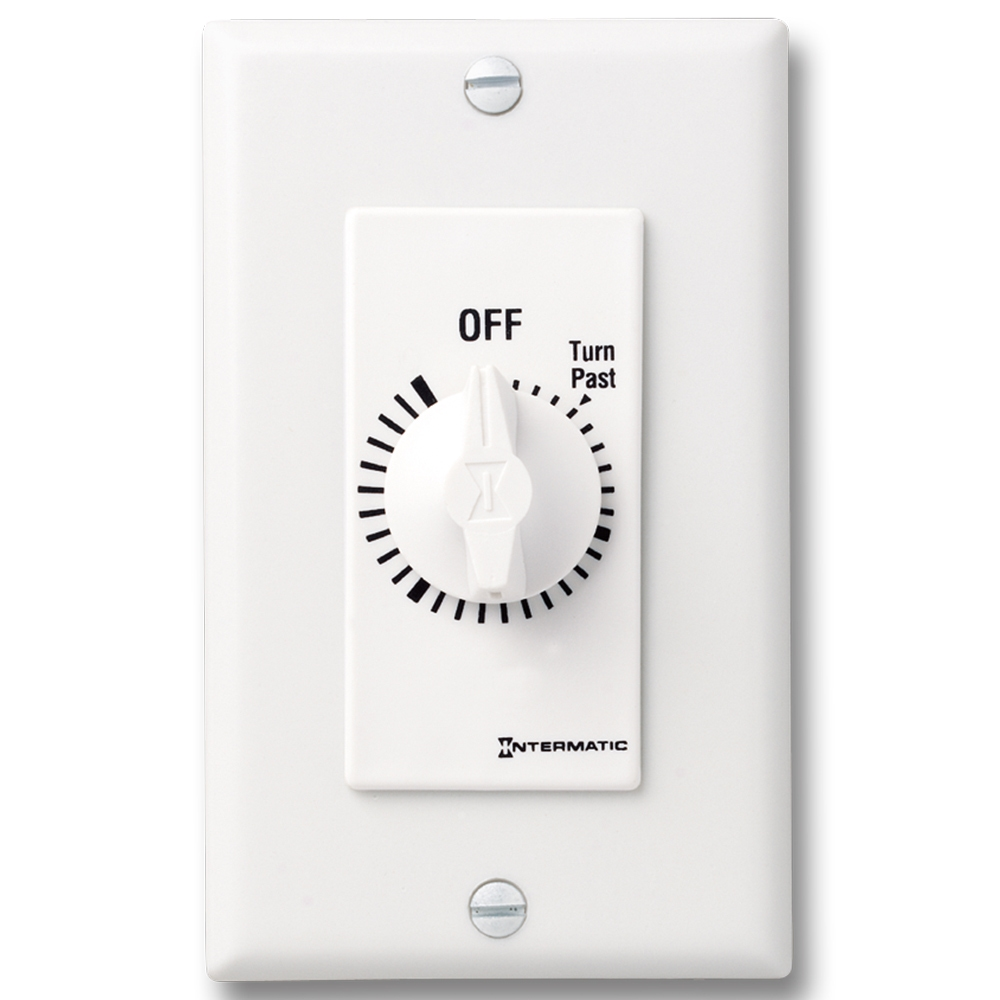

Product image for Intermatic FD2HW 2 Hour Auto-Off Springwound Timer
Image thumbnail 0
Image thumbnail 1
Email

Intermatic FD2HW 2 Hour Auto-Off Springwound Timer

Manufacturer: Intermatic | Catalog # FD2HW | North Coast Part # 93139
$93.51/ea
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Auburn Closes 3:00pm PT
1 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
SPST - 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Temperature Rating
-40 to 104 degrees F
Type
Decorator, Spring Wound, Auto-Off, Mechanical
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275073975
Color
White
GTiN
00078275073975
Product UPC
07827507397
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 2-Hour timer
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
