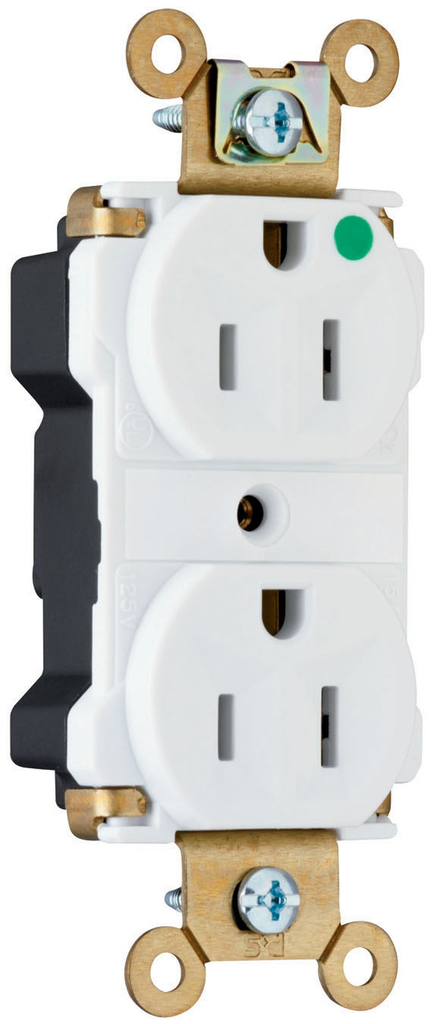

Product image for Pass & Seymour PT8200-W PlugTail™ Extra Heavy-Duty Hospital Grade Duplex Receptacle, 15A 125V - White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PT8200-W PlugTail™ Extra Heavy-Duty Hospital Grade Duplex Receptacle, 15A 125V - White

Manufacturer: Legrand / Pass & Seymour | Catalog # PT8200W | North Coast Part # 931860
$41.55/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
PlugTail® Extra Heavy-Duty Hospital Grade Duplex Receptacle 15 A 125 V IvoryFor detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.4x1.9x1.3
Type
Non-Reversing
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007091090
Color
White
GTiN
00785007091090
Product Series
PlugTail
Product UPC
78500709109
UNSPSC
39121406

Dimensions

Depth
0.866 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Wire Size: #12 AWG THHN
Certifications
  • cULus Listed
