Wiremold EFBFF Evolution™-Series Furniture Feed Floor Box

Manufacturer: Wiremold | Catalog # EFBFF | North Coast Part # 932193
$273.05/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

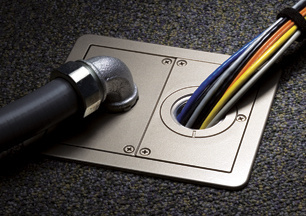

The Evolution™ Series Furniture Feed Floor Box is just one of the latest advancements in open space solutions from one of the most innovative manufacturers in the industry. Features such as one box that works in three different floor types (concrete, raised and wood floors), and large knockouts for cable feeds, makes it ideal for applications such as commercial office spaces, conference rooms, and entertainment venues.

Technical Information

Applications
Commercial
Cable Entry
knockouts
Material
Steel
Number of Outlets
0
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776176490
Color
Silver
Construction
Assembled
GTiN
00786776176490
Product Series
Evolution
Product UPC
78677617649
Weight
5.29 lb

Dimensions

Depth
7-1/4 Inch
Height
4-1/4 Inch
Width
6.63 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,ROHS
Country of Origin
USA
Features
  • Evolution Series Floor Boxes are designed to work in concrete, raised and wood floor applications and are fully adjustable both pre- and post-concrete pour.
  • Configurable with removable modules. In addition to having removable dividers and a tunnel feature that allows all compartments to be connected.
  • The modules are removable through the top or back of the floor box, allowing for easier installations and facilitating moves, adds, and changes without having to disconnect services, saving time and money.
  • Durable 180° articulating hinge. Hinge design enables covers to open a full 180° and lie flat on the floor surface with the durability to support a large cover. Provides easy access to all interior modules and activations while reducing tripping hazards.
  • Auto-close egress doors. Cable egress doors lock in position when open, and automatically closes around wires to protect cabling and reduce trip hazards.
  • Die-cast aluminum cover assemblies. Evolution Series Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die-cast aluminum to provide strength and style.
  • Finished interior. Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug in devices.
  • A single box can be specified for multiple floor types without having to order additional components or accessories. If used in concrete, concrete leveling legs need to be purchased separately for all non-OG boxes.
  • Decorative powder coat colors (black, brass, bronze, gray, nickel, and aluminum) will complement any room dcor.
  • Evolution Series Floor Boxes have been developed specifically with the A/V industry in mind.
  • 3 1/2'' - 3 7/8'' [89mm x 98mm] of wiring capacity behind each device plate, these boxes will accept devices from leading A/V manufacturers including Extron® Electronics and Crestron®.
Certifications
  • cULus Listed
  • RoHS Compliant
