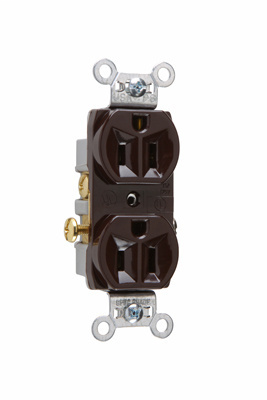

Pass & Seymour CR15 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Nylon Face Corrosion-Resistant Duplex Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # CR15 | North Coast Part # 933093
$2.52/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet
Commercial Spec Grade Duplex Receptacle, Side Wire 15amp 125volt, Gray

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Dimensions
33.58 mm W x 19.81 mm D x 83.31 mm H
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3
Size
1.322 L x .780 W x 3.281 H In
TC Connection
Side wire
Temperature Rating
-40 to 50 C
Type
Receptacles
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007119022
Product UPC
78500711902
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • Tri-drive terminal and mounting screws.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Impact-resistant nylon face and thermoplastic back body.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
