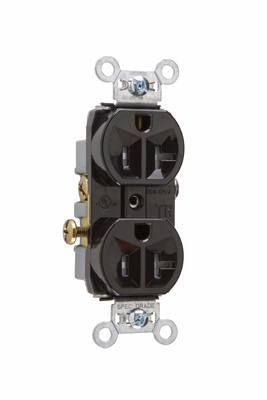

Pass & Seymour TR20-BK 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Black Nylon Tamper-Resistant Duplex Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # TR20BK | North Coast Part # 933110

$6.69/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Tamper-Resistant Commercial Grade Receptacle, 20A, 125V, BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Blade Dimensions
33.58 mm W x 28.7 mm D x 83.34 mm H
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3
Size
1.322 L x 1.130 W x 3.281 H In
Style
Duplex
TC Connection
Side wire
Temperature Rating
-40 to 50 C
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007241662
Product UPC
78500724166
UNSPSC
39121406

Dimensions

Depth
0.65 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • For covering patents, see www.legrand.us/patents.
  • High Impact resistant nylon face.
  • Backed-out tri-drive steel terminal screws. Side wire only.
  • Auto-ground clip assures positive ground.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
