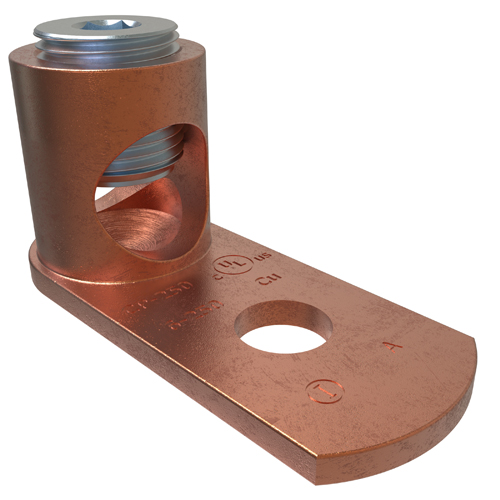

Product image for Ilsco CP-250 Copper Post Connector, Conductor Range 250-6, 3/8in Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco CP-250 Copper Post Connector, Conductor Range 250-6, 3/8in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # CP-250 | North Coast Part # 93795
$28.12/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ILSCO Post Connector, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 3/8 or 5/16 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 250 kcmil - 6 Str, 2 Sol - 6 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 1/4 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Bolt Size
3/8 in
Conductor Material
Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
13/32 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
CP:POST CONNECTOR
Voltage
35 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669030150
Color
Copper
GTiN
00783669030150
Product UPC
78366903015
Weight
0.186 lb

Dimensions

Height
1.067 Inch
Length
2.36 Inch
Width
0.945 in
